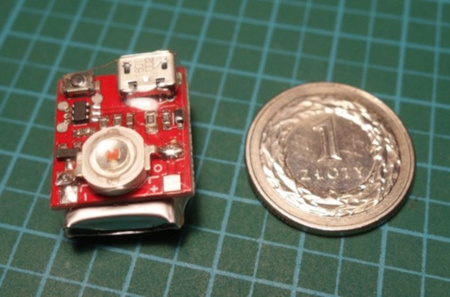

Strobon LED light - Green colour

This product is compatible with latest FAA and CAA anti-collision lights rules for drones. It's visible from 3 miles away at night.


Product Description:

Strobon Standalone is a good navigation strobe solution for enclosed drones like:

- YUNEEC (Breeze, H520, Typhoon H, Q500, H920)
- DJI (Phantom, Inspire, Mavic, Spark, Mavic Air and others)
- 3DR Solo
- Walkera and others.

No cabling required.

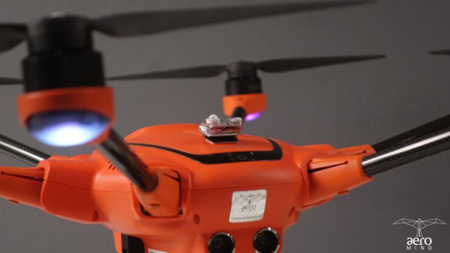

Just attach it to your drone or model aeroplane with our Dual Lock fasteners Velcro (included) press the button to turn it ON. That's all.


Features:

- 5 hours continuous operation with onboard battery.
- Powerful 3W LED
- No Cabling required
- Easy to use single button interface.
- Onboard battery status and charge indicator system.
- Compatible with all 5V MicroUSB cables and chargers.(cable included)
- Contact Pads(L+ and L-) for the external LED support.
- Battery with internal overcharge and discharge protection.


Colour Selection:

Because of human eye's limitations, Every colour has different visibility and energy transfer rate.
Also, every LED colour has different chemical compounds and efficiency.
According to our experience in years;

WHITE: The best visibility and efficiency.
RED: 2th in the visibility, efficiency is same as white but the best for the warning.
GREEN: 3th in the visibility and efficiency. Best for Standard RED/GREEN (Left/Right) navigation usage.

Usage:

BATTERY STATUS: Press the button then release to learn battery status when it is OFF.
(1 blink: Need Charge, 2 blinks: It's OK, 3 blinks: Fully Charged)

ON/OFF: Press and hold the button for 3 seconds to turn ON or OFF

CHARGE: Plug it to any micro USB charger or computer port when charging required.
- The LED will blink with very short bursts when charging.
- The LED will blink with 1 second ON / 2 seconds OFF pattern when the battery is fully charged.
It takes 2 hours for empty batteries.


Notice:

The battery includes its own PCM module. This module protects the battery from overcharge and discharges for a long lifespan. If there is no life sign on the circuit when you press the button, probably discharge protection has activated because of the low battery voltage. Just charge it to turn it on.


Specifications:

Dimensions: 22mm x 18mm x 10mm
Weight: 4gr
Current Consumption: <15mA per hour
Charge Port: MicroUSB
Charge Current: 40mA max.
Charge Time: ~2 hours
Battery Type: 80mA LiPo Battery with safe and reliable PCM circuit.

Inhalt:

1 x Strobon LED (red, white or green) PLEASE SELECT COLOR
1 x USB charging cable for strobe LED
1 x Double-sided velcro 20mm x 20mm
