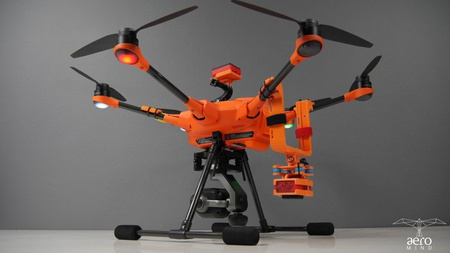

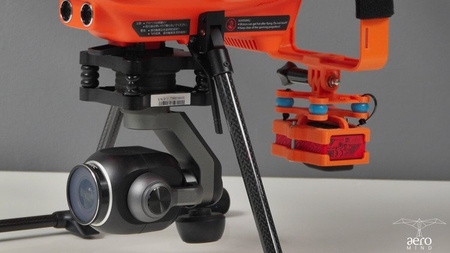

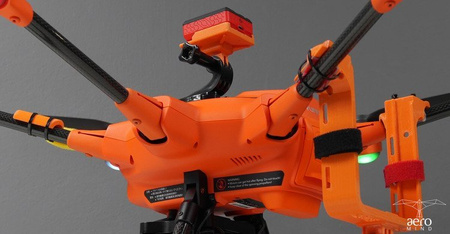

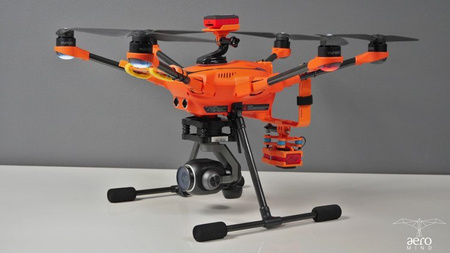

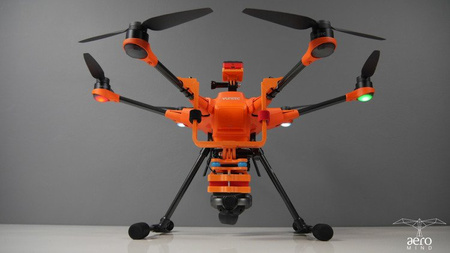

Dedicated Micasense ALTUM multispectral camera mount for Yuneec H520
The Micasense Altum camera (shop) combines a radiometric thermal camera and five narrow bands of high-resolution light to create advanced high-resolution thermal and multispectral images for advanced analysis.
Main features of MicaSense Altum:
- High-resolution multispectral imagery in synchronized Blue, Green, Red, Red edge, Near infrared (NIR) and radiometric thermal imaging channels
- Field pixel of 5.2 cm at 120 m above ground and 81 cm in thermal imaging
- USB data storage capacity of up to 128GB
- Recording of each channel image every 1 second
- DLS 2 - light sensor to determine light intensity and angle of incidence of sunlight while geotagging each image with a built-in GPS module
- Calibration panels allowing for precise camera calibration in various lighting conditions
Technical specifications:
Weight: Altum + DLS 2: 406.5 g, Altum: 357 g, DLS2: 49 g, Wi-Fi Adapter: 2 g, USB stick: 9 g
Dimensions: 8.2 cm x 6.7 cm x 6.45 cm
External power supply: 4.9 - 25.2 V
Power consumption: 5.5/7.0/10 W (idle, medium, maximum)
Multispectral channels: Blue, green, red, red edge, near infrared (NIR)
RGB channel: High resolution, global shutter, aligned with multispectral channels
Thermal imaging : LWIR 8-14um. Radiometrically calibrated
Resolution : 2064 x 1544 (3.2 MP for each channel), Field pixel 5.2 cm at 120 m AGL and 81 cm for thermal imaging
Frame rate: 1 image per second (all channels), 12-bit RAW
Field of view: 48° x 37° (multispectral), 57° x 44° (thermal)
Focal length: 8 mm multispectral, 1.77 mm thermal
Memory: External memory support on USB 3.0
