Dedrone RF-360 anti-drone system
DedroneSensor RF-360

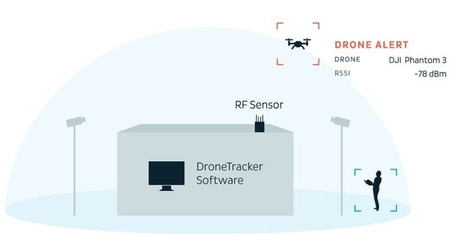

The DedroneSensor RF-360 is a passive, network-attached radio sensor for the detection, classification, and localization (geolocation) of drones and their remote controls.
KEY FEATURES
-
RF-based localization finds drones and pilots and plots them on a map
-
Long-range drone detection and direction finding (up to 5 km)
-
Fast installation and start-up due to cloud-readyness thanks to integrated LTE and GPS
-
Provides information on “hotspots” of drone activity
-
Optimized for RF noisy environments
-
No legal authorization required
DedroneSensor RF-360 Specifications
Range (line of sight)
Under normal conditions 1.25 mi (2.0 km) for most drones, under ideal conditions up to 3.1 mi (5.0 km) for specific drones
Device Type
Sensor*
Radio Frequency
Omnidirectional, passive detection, classification, and direction finding
L x W x H
12" x 12" x 15.96" (300 mm x 300 mm x 405 mm)
Weight
15.5 lb (7.0 kg)
Ingress Protection Rating
IP65
Operating Temperature
-4 °F to +131 °F (-20 °C to +55 °C)
Power Supply Cellular Operation
AC 100-240V 50/60 Hz max. 1 A
Power Supply on Premises Operation
PoE IEEE 802.3bt (60 W) or AC 100-240V 50/60 Hz max. 1 A
Power Consumption
24 W (typical)
Communication Technologies
Cellular Communication** or Ethernet
Connectivity
Via LAN to existing IT infrastructure or via the integrated mobile connection in the Dedrone Cloud
Configuration, Operation, and Alarms
Via the browser-based DedroneTracker software (software version >= 4.2.15 and valid license)
Software Updates
Firmware and DedroneDNA updates via a DedroneTracker instance (cloud or server)
*pole not included **for North America, most of Europe and others possible
