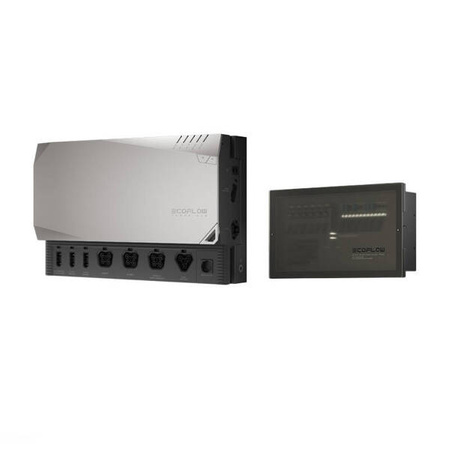

Kit EcoFlow Power Hub + Cable Pack + Distribution panel
EcoFlow HUB kit + wires + distribution panel
Opt for a handy power kit from EcoFlow and create an optimal photovoltaic system for your RV. The compact hub performs 5 different functions, and with an AC output of 3600W, it allows you to power many essential devices. You'll also find a smart distribution panel included, which will allow you to manage the power and adjust it to the equipment of your choice.
Smart solutions
Power hub from EcoFlow is the perfect combination of compact design and high functionality. The compact device combines 2 MPPT solar charge controllers, an MPPT battery charger, a DC-DC converter and an inverter charger. This allows you to save space in your RV, while still using all the necessary components of a photovoltaic system. Plug&play operation is also a plus.
Charge as you like
The hub offers a total output of 6000W and you can easily charge it with solar power. The 3 PV 1600W outlets allow you to connect the product with flexible, rigid and portable solar panels, plus you can use other brands of solar panels without worry. You can also use shore power, alternator or EcoFlow smart generator to renew energy.
Multi-level protection
The Hub uses a number of smart solutions so you don't have to worry about the security of connected devices. The advanced MPPR algorithm optimizes energy harvested from the sun, the X-Boost function provides output power of up to 5,000 watts AC, and X-Stream guarantees fast charging of up to 3,000 watts AC. The device also regulates the amperage to protect the car's battery.
Everything under control
You'll find a smart distribution panel included, which is equipped with 6 AC and 12 DC positions. You can connect the devices of your choice to it to manage energy and share it among powered equipment. The console, available for sale separately, will allow you to control up to 6 DC positions and monitor charging data in real time.

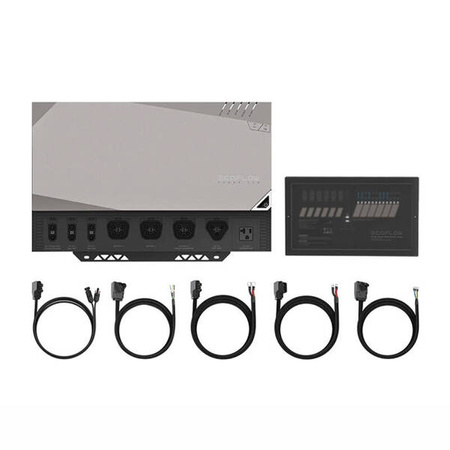

Cable kit
The kit also includes cables, with which you can easily connect your batteries and power devices wherever you want. In the package you'll find an AC charging cable, an alternator charging cable, a solar charging cable, Main Out AC 2000 W and DC 1600 W cables, as well as an RJ45 CAN Bus cable for the distribution panel.
Included
- Power Hub
- Cable kit
- Distribution panel
Power Hub specification
| Brand | EcoFlow |
|---|---|
| Name | Power Hub |
| AC output | Pure Sine Wave, 3600W (7200W surge), 120V, 50/60Hz |
| DC output | 13.6V / 70A, 1000W max; 26.4V / 60A, 1600W max; |
| AC input | X-Stream fast charging 3000W max, 15A max. |
| AC input voltage | 220-240V, 50/60Hz |
| Solar charging inputs | 15-150V 30A, 1600W max. |
| Alternator charging inputs | 13-60V 60A, 1600W max. |
| Operating temperature | -25°C - 60°C |
| Storage temperature | -25°C - 60°C |
| Charging temperature | -25°C - 60°C |
| Discharge temperature | -25°C - 60°C |
| Dimensions | 48x14x30cm |
| Weight | 14kg |
Distribution panel specification
| Brand | EcoFlow |
|---|---|
| Name | Distribution panel |
| Main AC input | 30A max. 220-240V, 50Hz |
| DC main input | 70A max. 10-30V DC |
| AC output | 6 AC circuits, max. 10A each, 220-240V, 50Hz |
| DC output | 6 controlled circuits + 6 regular circuits, 20A each max, 10-30V DC |
| Operating temperature | -25℃-60℃ |
| Dimensions | 35.4x21x9.8cm |
| Net weight | 2.6kg |
| Tests and Certifications | UL Standard, FCC, PSE |
