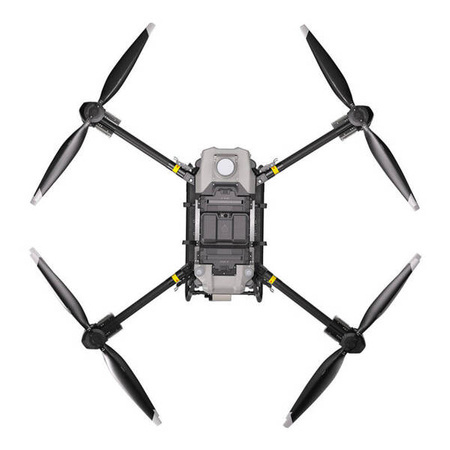

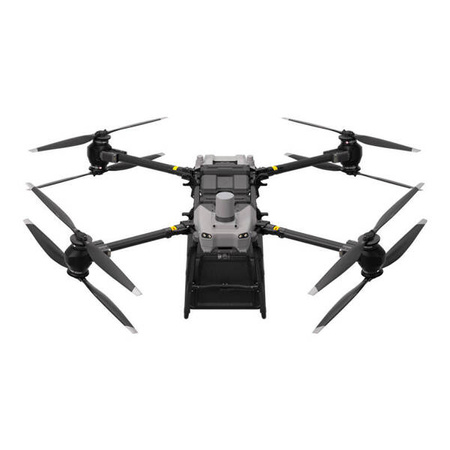

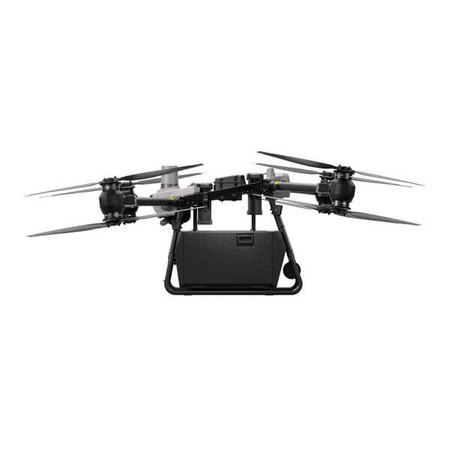

DJI FlyCart 30 Drone
Reach where others fail, quickly and effectively
Thanks to its high load capacity and considerable range, it overcomes space limitations and allows it to accomplish assigned tasks.
Varied environmental conditions
The ability to conduct operations in all weather conditions and at various altitudes meets operational needs in various scenarios.
Full control from start to finish
From takeoff to landing, safety at every stage of the mission.
Setting an alternate point and making an emergency landing
Supports setting multiple alternate points. In case of unusual situations, an emergency landing can be performed to improve operational safety.
Security during take-off and landing
During takeoff and landing, the drone has many safety features, such as sound and light prompts, a 6-second propeller start delay, and additional landing confirmation. It can also be used with an RTK module to achieve centimeter-level precise positioning, making takeoff and landing even more safe.
Built-in parachute system
The parachute system is equipped with auxiliary functions such as automatic control after power-on, independent power supply, protection that stops the propellers before the parachute deploys, and audible and visual alarms. The system enables parachute deployment at low altitude and a stable landing, reducing the risk of personal injury and property damage in extreme situations.
Intelligent obstacle avoidance
lyCart 30 is equipped with front and rear active phased array radars and two sets of binocular vision systems that can provide omnidirectional intelligent obstacle avoidance. The built-in ADS-B signal receiver can provide timely warning of nearby manned aircraft.
Safety guaranteed
FlyCart 30 can be powered by a dual battery system. If one battery fails during flight, the other battery can keep the drone operating normally and ensure a safe return. This solution allows you to confidently cope with difficult working conditions and ensures flight safety at the highest level.
High signal strength, stable image transmission
DJI FlyCart 30 is equipped with DJI O3 image transmission, and the image transmission distance can be up to 8 kilometers.
Intuitive and easy to use
DJI RC Plus is equipped with a 7-inch high-brightness screen and supports Dual Control mode. Operators located in two different locations can switch drone control permissions with one click to meet the needs of different operations.
Two loading systems, one target
Cargo box and winch, can flexibly meet various transportation scenarios.
Real-time notifications, safety in flight
During flight, you can check the drone's battery and power levels in real time, confirm range or flight time, and check destination availability to ensure operational safety. In the event of extreme weather conditions or other anomalies, DJI Pilot 2 will immediately warn about threats and support emergency point management functions.
Set contents
- FlyCart 30

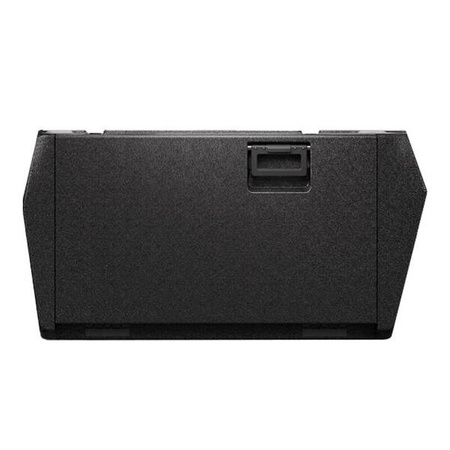

- Cargo box

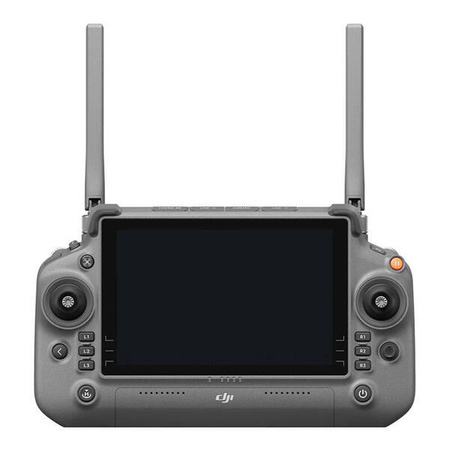

- DJI RC Plus equipment

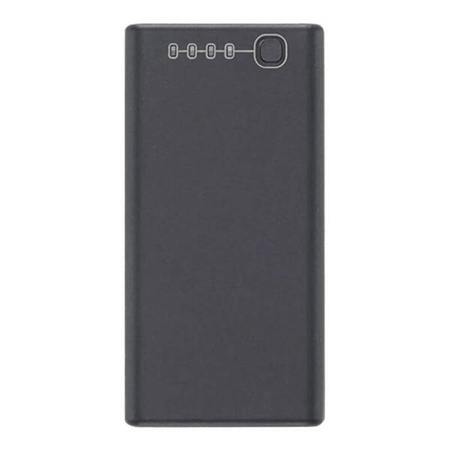

- WB37 camera battery (installed in the camera)

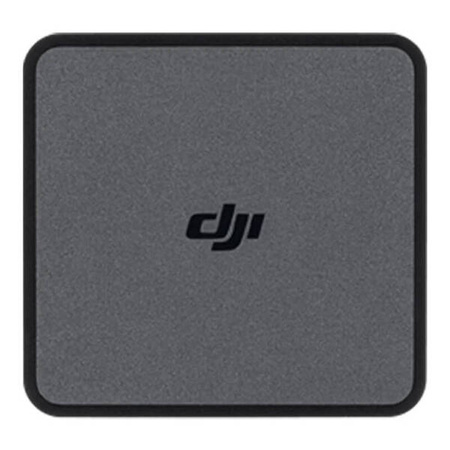

- USB-C 100W charger
- Apparatus harnesses

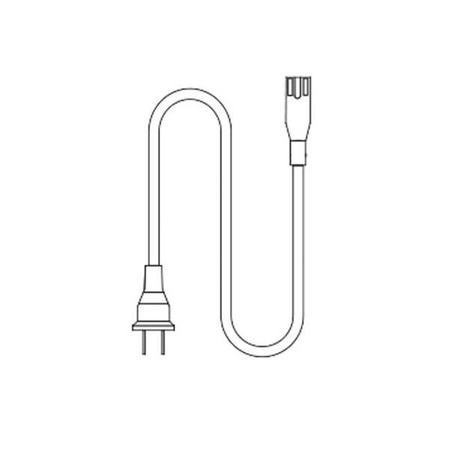

- Power cable with EU plug

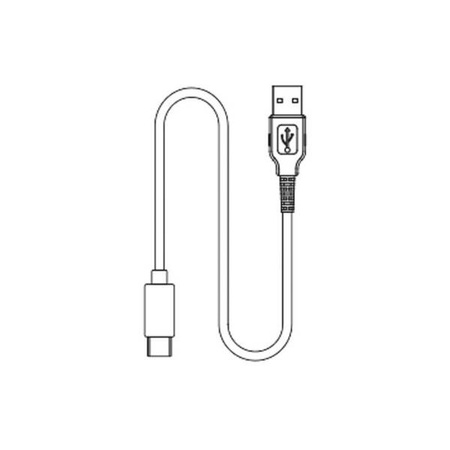

- USB-A to USB-C cable

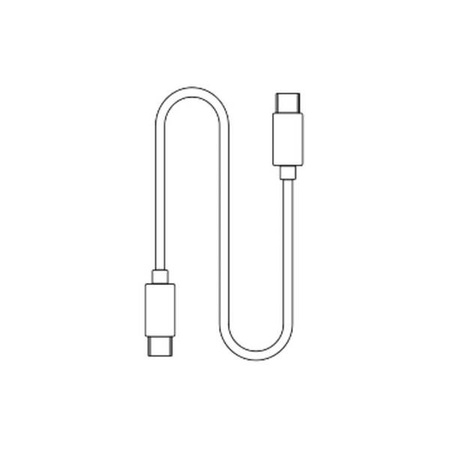

- USB-C to USB-C cable
- Goggles

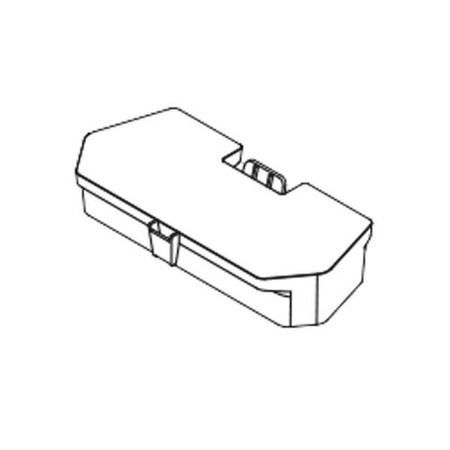

- Battery cover

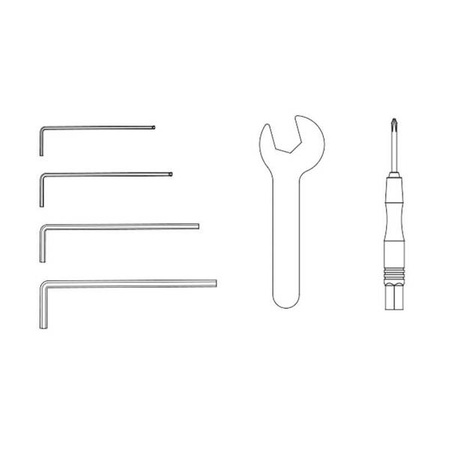

- A set of basic tools
| DRONE | |
| Mass | 42.5 kg (without batteries) 65 kg (with two batteries) |
| Maximum takeoff weight | 95 kg (with cargo box) |
| Maximum wheelbase | 2200mm |
| Dimensions | 1590 mm long, 1900 mm wide, 947 mm high (arms extended, propellers folded) |
| Dimensions | 2800 mm long, 3085 mm wide, 947 mm high (arms extended, propellers extended) |
| Dimensions | 1115 mm long, 760 mm wide, 1027 mm high (arms folded, propellers folded) |
| Folding method | Assembly into the housing |
| Maximum number of batteries | 2 |
| Maximum hover time (no load) | Flight with two batteries: 29 min Flight with one battery: 15 min (The data was measured in an experimental environment with no wind at zero altitude and is for reference only) |
| Maximum hover time (with full load) | Flight with two batteries (payload: 30 kg): 18 min Flight with one battery (payload: 40 kg): 8 min (The data was measured in an experimental environment with no wind at zero altitude and is for reference only) |
| Maximum hover time (with full load) | Flight with two batteries: 28 km Flight with one battery: 12 km (Data was measured in an experimental environment, with no wind, at zero altitude and while flying at a constant speed of 15 meters per second) |
| Maximum Flight Distance (Fully Loaded) | Flight with two batteries (payload: 30 kg): 16 km Flight with one battery (payload: 40 kg): 8 km (Data was measured in a windless experimental environment at zero altitude and is for reference only) |
| Maximum flight time (with full load) | Flight with two batteries (30 kg load): 18 min Flight with one battery (40 kg load): 9 min (Data was measured in an experimental environment, with no wind, at zero altitude and while flying at a constant speed of 15 meters per second) |
| Operating temperature range | -20°C to 45°C |
| Level of security | IP55 |
| Hover accuracy | Positioning in RTK mode: horizontally ±10 cm, vertically ±10 cm Positioning without RTK mode enabled: horizontal ±60 cm, vertical ±30 cm |
| RTK/GNSS frequency range | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2 GNSS: GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1 |
| Maximum angle of inclination (pitch axis) | 30° |
| Maximum rate of climb | 5 m/s (30 kg loading, measured in a windless experimental environment at zero altitude, for reference only) |
| Maximum descent speed | vertical: 3 m/s under slope: 5 m/s (vertical speed) (Loading 30 kg, measured in a windless experimental environment at zero altitude, for reference only) |
| Maximum horizontal flight speed | 20 m/s (30 kg loading, measured in a windless experimental environment at zero altitude, for reference only) |
| Maximum flight altitude | 6000 m (without loading) |
| Maximum wind speed | 12 m/s (30 kg loading, measured in an experimental environment at zero height, for reference only) |
| DRIVE SYSTEM | |
| Stator size | Diameter 100 mm, height 33 mm |
| Motor KV value | 48 rpm/V |
| Maximum engine power | 4000W/per engine |
| The material from which the propellers are made | Carbon fiber |
| Propeller size | 54 inches |
| Propeller type | Double foldable |
| Engine diameter | 1375mm |
| Number of engines | 8 |
| LED LIGHTING | |
| Effective lighting range | 10 m |
| Lighting type | 60Hz, turns on automatically depending on the lighting conditions of the working environment |
| DJI O3 IMAGE TRANSMISSION | |
| Model | Pigeon (with DDR) – 2T4R |
| Maximum effective signal distance | 20 km (FCC) 8 km (CE/SRRC/MIC) (without obstacles and disruptions) |
| Working frequency | 2.4000 GHz to 2.4835 GHz 5.725 GHz to 5.850 GHz (Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details) |
| Transmit power (EIRP) | 2.400 GHz to 2.4835 GHz: 5.725 GHz to 5.850 GHz: |
| Data safety | AES-256 |
| ADS-B | Supported |
| ACTIVE PHASE RADAR WITH ROTATING MATRIX | |
| Model | RD241608RF (Forward Phased Array Digital Radar) RD241608RB (rear phased array digital radar) |
| Height measurement | Altitude range: 1.5 to 200 meters |
| Avoiding obstacles | Predictable distance (omni-directional): 1.5 to 50 meters Angle of View (FOV): Digital radar with forward phased array: 360° horizontal, ±45° vertical, ±45° upward (cone) Digital rear phased array radar: 360° vertical, ±45° horizontal Conditions of use: The relative height of the drone is greater than 1.5 meters. Safe distance: 3.5 meters (distance between the drone and the obstacle after braking and hovering stably) Obstacle avoidance direction: Omni-directional obstacle avoidance (30kg load, measured in an experimental environment with zero altitude and no wind, for reference only) |
| BINOCULAR VISION SYSTEM | |
| FOV | Horizontal: 90°, Vertical: 106° |
| Working environment requirements | The surface is made of diffuse reflective material, with rich surface texture and reflectance greater than 20% (e.g. cement pavement, etc.) under sufficient lighting conditions (above 15 lux, normal indoor fluorescent lighting). |
| FPV CAMERA | |
| Resolution | 1920×1440 |
| DFOV | 149° |
| Frame rate | 30fps |
| Type | Full HD FPV single-axis camera with gimbal |
| Lighting | Supported |
| LOAD BOX | |
| External dimensions | 754 mm long, 472 mm wide, 385 mm high |
| Internal dimensions | 573 mm long, 416 mm wide, 306 mm high |
| Material | EPP + aluminum alloy frame |
| Weight measurement function | Supported |
| Box weight | approximately 3 kg |
| Capacity | 0 to 40 kg |
| PARACHUTE SYSTEM | |
| Maximum load | ≤95kg |
| Parachute casing size | 300 mm long, 200 mm wide, 120 mm high |
| Parachute weight | approx. 2.1 kg |
| Automatic release time | ~1000 ms |
| Rate of descent | No more than 6 meters/second (full load condition without wind at sea level, for reference only) |
| Parachute canopy type | square umbrella |
| Parachute times material | nylon |
| The surface of the parachute canopy | approx. 22 square meters |
| Minimum parachute opening height | 60 m |
| Working temperature | -20°C to 45°C |
| Level of security | IP55 |
| Battery life after motherboard power off | ≥1 hour |
| Memory card capacity on the motherboard | Real-time recording of each flight, up to 10 flights can be recorded |
| Buzzer stomp alarm | Supported |
| Alarm lighting | Supported |
| Manually deploying a parachute | Supported |
| Possibility of opening the parachute independently | Supported |
| WINCH (OPTIONAL) | |
| Model | A2EWH-30A |
| Dimensions | 252 mm long, 195 mm wide, 193 mm high |
| Counterweight system | 1.9kg |
| Mass of the load release hook | 0.6kg |
| Ground load release function | Supported |
| Capacity | Flight with two batteries: from 5 to 30 kg Flight with one battery: from 5 to 40 kg |
| Winch cable length | 20 m |
| Maximum winding and unwinding speed | 0.8 m/s |
| Working temperature | -20°C to 45°C |
| Level of security | IP55 |
| Weight measurement function | Supported |
| Emergency cord cut-off function | Supported |
| Load swing prevention function | Supported |
| Manual operation mode | Supported |
| Autonomous operations | Supported |
| Protection against speed changes | Supported |
| INTELLIGENT DRONE BATTERY | |
| Model | DB2000 |
| Capacity | 38000 mAh |
| Tension | 52.22 V |
| Cell type | 14S1P three-component lithium |
| Energy | 1984.4 Wh |
| Mass | approx. 11.3 kg |
| Battery installation method | Clip-on |
| Dimensions | 316 mm long, 152 mm wide, 279 mm high |
| Working temperature | -20°C to 45°C |
| Charging parameters | from 5 to 15°C: 1.0C from 15 to 45°C: 2.5C |
| Maximum charging power | 5700 W |
| Battery self-heating | Supported (When the battery temperature is lower than 10°C, long pressing the battery button or turning on the aircraft activates the self-heating function. When the battery temperature is lower than 20°C, connecting the battery to the charger activates the self-heating function. Charging in a low-temperature environment may shorten the service life battery) |
| DJI C8000 BATTERY CHARGING STATION | |
| Model | CHX101-7000 |
| Input voltage | 90 to 264 VAC |
| Output voltage | 42 to 59.92 Vdc |
| Maximum output power | 7200 W (two power cords) 3600W (one power cord) |
| Number of output channels | 2 |
| Security function | Over temperature, over voltage, under voltage, short circuit, fan stop etc. |
| Working temperature | -20°C to 45°C |
| Protection function while charging | Supported |
| CONTROL EQUIPMENT | |
| Model | DJI RC Plus |
| App | DJI Pilot 2 |
| Working frequency | 2.400 GHz to 2.483 GHz 5.725 GHz to 5.850 GHz |
| Transmit power (EIRP) | 2.4000 GHz to 2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.725 GHz to 5.850 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC) |
| Working temperature | from -20°C to 50°C |
| Charging ambient temperature | from 5°C to 40°C |
| Built-in battery | 3.3 h (at normal temperature, two-channel image transmission) 25°C, energy consumption from 100% to 0%. The data is for reference only, please refer to actual use. |
| External battery | 2.7 h (at normal temperature, two-channel image transmission) 25°C, energy consumption from 100% to 0%. The data is for reference only, please refer to actual use. |
| Charging method | Use a USB-C charger for fast charging with a maximum power of not less than 65 W (maximum voltage 20 V). It is recommended to use the DJI portable charger |
| Charging time | Built-in battery 2 hours, built-in battery and external battery 2.5 hours (in the off state according to the default charging method) |
| Level of security | IP54 |
| Video output port | HDMI |
| Wi-Fi protocol | WiFi 6 |
| Wi-Fi operating frequency | 2.4000 GHz to 2.4835 GHz 5.150 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz |
| Bluetooth protocol | Bluetooth 5.1 |
| Bluetooth operating frequency | 2.4000 GHz to 2.4835 GHz |
| Transmit power (EIRP) | <10dBm |
| GNSS | GPS + Galileo + BeiDou |
| Display | 7.02 inch touch LCD display, resolution 1920*1200, brightness 1200 nits |
| 4G dongle | Supported |
| Controlled by two operators | Supported |
