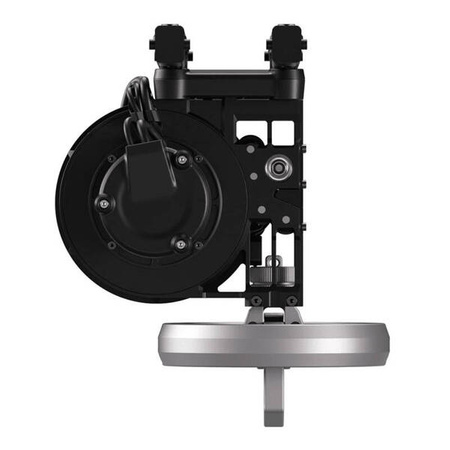

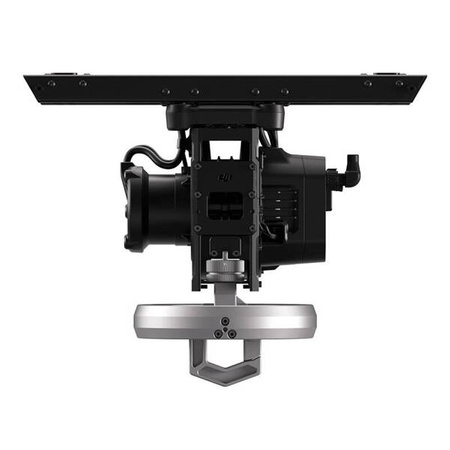

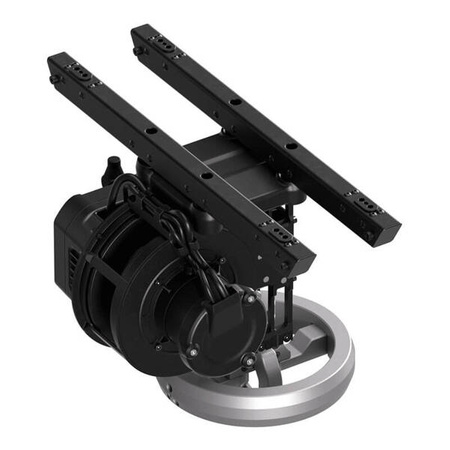

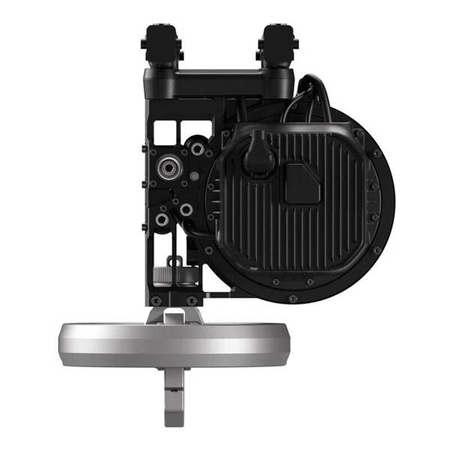

DJI FlyCart 30 Winch
The DJI FlyCart 30 Winch is a system that mounts under the DJI Flycart 30.
Kit contents:

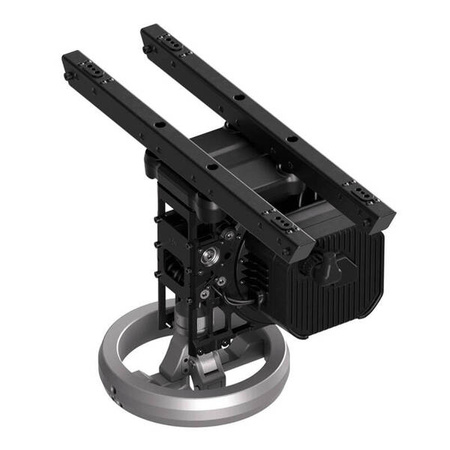

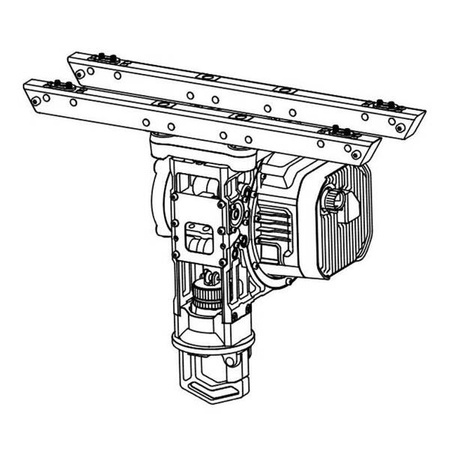

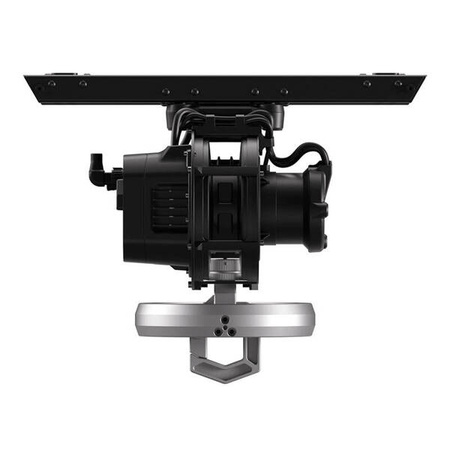

- 1x Winch

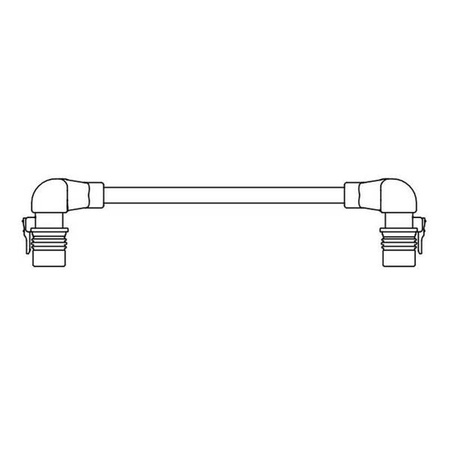

- 1x Winch communication cable
- 2x Landing gear

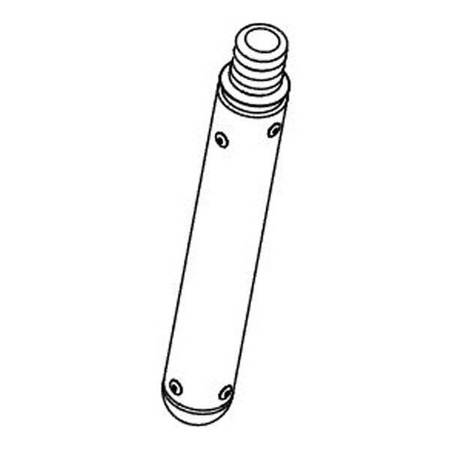

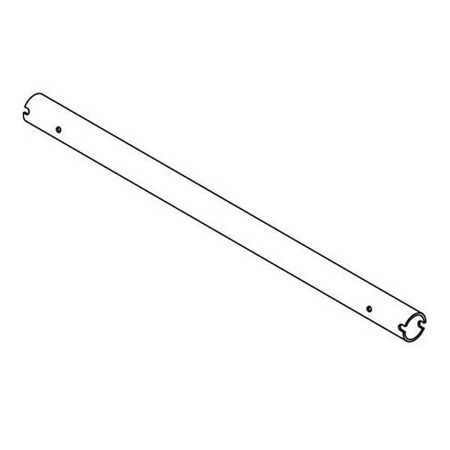

- 4x Landing gear extension rod

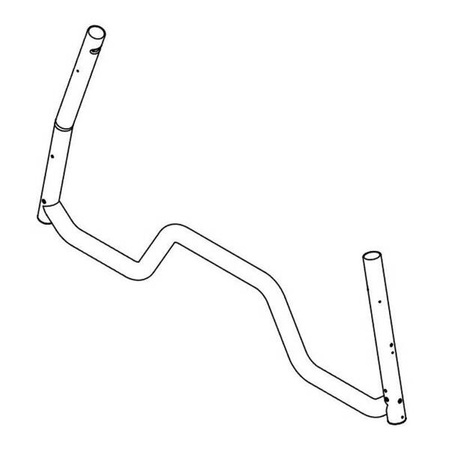

- 1x Front landing gear rod
- 1x Rear landing gear rod

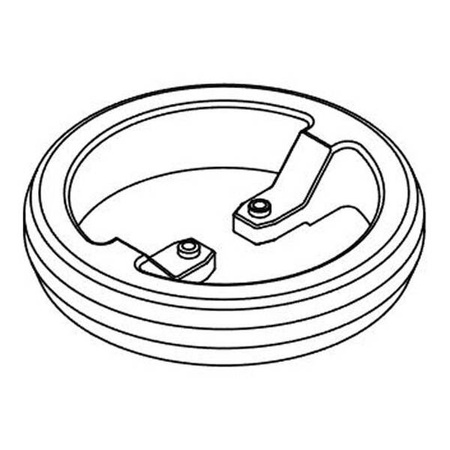

- 1x Counterweight

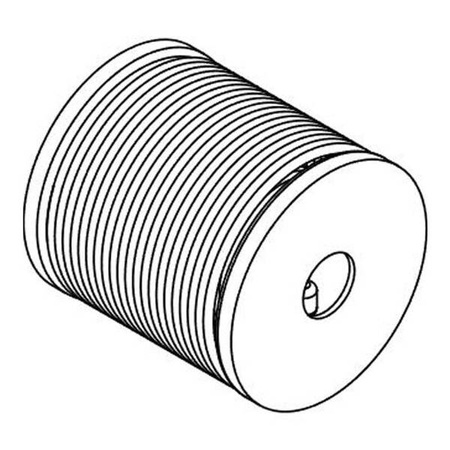

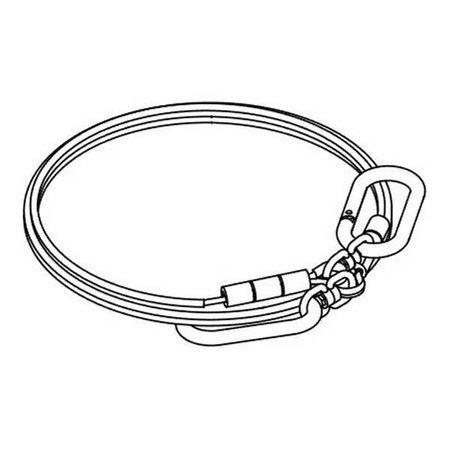

- 1x Cable (20m)
- 4x Extension cable

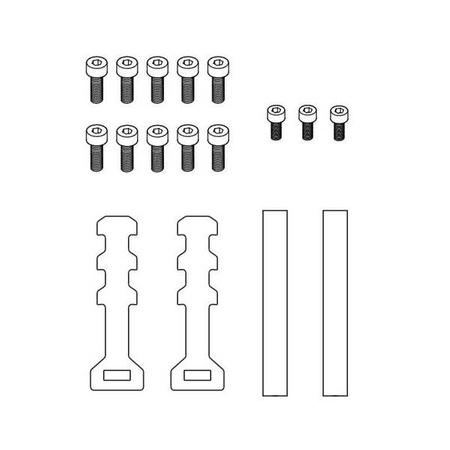

- Set of screws, covers, and Velcro straps
SPECIFICATION:
Model | A2EWH-30A |
Dimensions | 252 mm length, 195 mm width, 193 mm height |
Counterweight System | 1.9 kg |
Load Release Hook Weight | 0.6 kg |
Ground Release Load Function | Supported |
Payload | Flight with two batteries: from 5 to 30 kg Flight with one battery: from 5 to 40 kg |
Winch Cable Length | 20 m |
Maximum Winding and Unwinding Speed | 0.8 m/s |
Operating Temperature | -20°C to 45°C |
Protection Rating | IP55 |
Mass Measurement Function | Supported |
Emergency Cable Cut Function | Supported |
Load Swing Prevention Function | Supported |
Manual Operation Mode | Supported |
Autonomous Operations | Supported |
Speed Change Protection | Supported |
