Precision agriculture on a whole new level

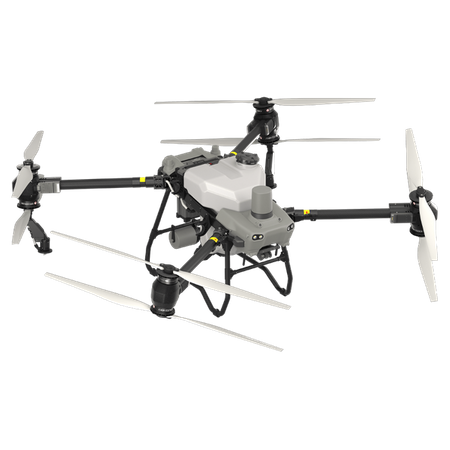

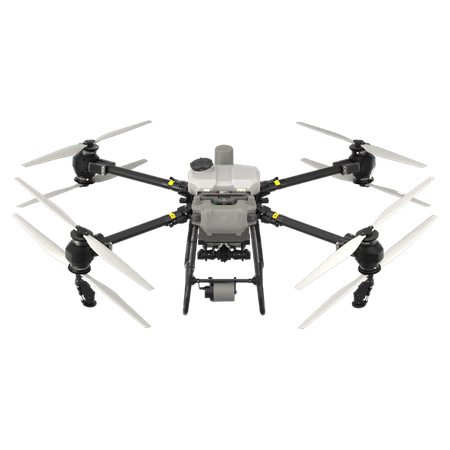

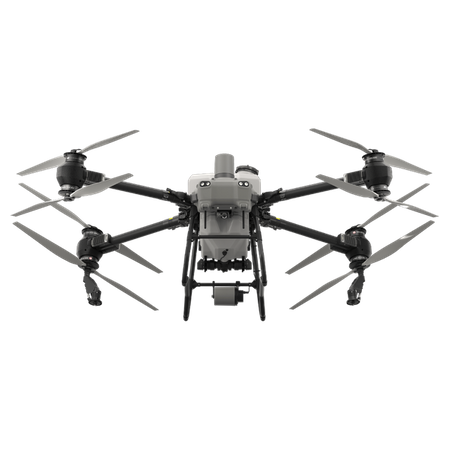

DJI AGRAS T50 elevates agricultural operations with drones to a new level. It is equipped with a powerful coaxial propulsion system with two motors on each arm and a deformation-resistant design, ensuring higher-level stability during 40 kg spraying or 50 kg spreading operations.
DJI AGRAS T50 uses a dual spraying system, front and rear phased radar, and binocular vision system, guaranteeing stable operation and consistent performance.
High spraying efficiency, high dosing accuracy
The dual atomization system ensures a high spraying efficiency of 16 liters per minute (spraying with 2 nozzles), and the droplets are uniform and fine. For spraying fruit trees, an optional 50 l sprayer tank and a pair of centrifugal nozzles can be installed. The flow rate can be increased to 24 liters per minute (spraying with 4 nozzles), increasing the spray coverage area and effectively improving operational efficiency and the speed of chemical solution adhesion to the back of the leaves.
Hundreds of reliability tests ensure safe and stable operation
Spraying and spreading missions are frequent, intense, and complex operations. The T50 has undergone hundreds of reliability tests to ensure the safety of the tasks performed.
Aerial measurements and crop protection, during a single flight
The new Agras T50 agricultural drone integrates aerial measurement functions with simultaneous protection of crops or orchards. It is equipped with an FPV camera with a gimbal of ultra-high resolution and adjustable viewing angle, which can capture images of fields and orchards in real-time. Thanks to the intelligent remote control apparatus, it can generate high-resolution maps and routes and take off with one click. This ensures the possibility of automatic operation at all times.
Stable signal
The new and upgraded four-antenna DJI O3 Transmission system works offline even in areas without cellular network coverage, offering a transmission range of up to 2 km. The anti-interference function helps ensure high signal quality when working over tall crops.
DJI Relay Module (optional)
In operational scenarios where the image transmission signal is significantly disrupted, the optional DJI Relay module can be used. Image transmission then always takes place online, making the flight safer.
Set contents:
- Agras T50 drone
- Air-cooled radiator
- Toolbox
- Remote control
- Straps
- USB-C cable
| Drone | |
|---|---|
| Weight | 39.9 kg (without battery) 52 kg (with battery) |
| Maximum takeoff weight | Spraying: 92 kg (at sea level) Spreading: 103 kg (at sea level) |
| Maximum diagonal wheelbase | 2200 mm |
| Dimensions | 2800×3085×820 mm (arms and propellers unfolded) 1590×1900×820 mm (arms unfolded and propellers folded) 1115×750×900 mm (arms and propellers folded) |
| Hovering accuracy range (with strong GNSS signal) | RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm (with radar module enabled: ±10 cm) |
| Hovering accuracy (with strong GNSS signal) | RTK enabled: - Horizontal: ± 10 cm - Vertical: ± 10 cm RTK disabled: - Horizontal: ± 0.6 m - Vertical: ± 0.3 m (with radar module enabled: ± 0.1 m) |
| RTK/GNSS operating frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1 |
| Maximum configurable flight radius | 2000 m |
| Maximum wind resistance | 6 m/s |
| Propulsion system – motors | |
| Stator size | 100×33 mm |
| KV | 48 rpm/V |
| Power | 4000 W/motor |
| Propulsion system – propellers | |
| Material | Carbon fiber nylon filament |
| Size | 54 inches (1371.6 mm) |
| Propeller rotation diameter | 1375 mm |
| Quantity | 8 pieces |
| Spraying system – tank | |
| Model | LX8060SZ |
| Quantity | 2 |
| Nozzle distance | 1570 mm (rear nozzles) |
| Droplet size | 50-500 μm |
| Effective spray width | 4-11 m (at 3 m above crops) |
| Spraying system – pumps | |
| Type | Centrifugal pump (magnetic drive) |
| Quantity | 2 |
| Flow rate of a single pump | 0-12 l/min |
| Maximum flow rate | 16 l/min (2 nozzles); 24 l/min (4 nozzles) |
| Spreading system | |
| Compatible material diameter | Dry granules 0.5-5 mm |
| Spreading tank volume | 75 l |
| Spreading tank load capacity | 50 kg |
| Spreading width | 8 m |
| Radar system | |
| Model | RD241608RF (front phased radar); RD241608RB (rear phased radar) |
| Terrain following | Maximum slope: 20° Detection height range: 1-50 m Working range of stabilization: 1.5-30 m |
| Obstacle avoidance | Obstacle detection range (multi-directional): 1–50 m FOV: Front phased radar: horizontally 360°, vertically ±45°, upwards ±45° (cone) Rear phased radar: vertically 360°, horizontally ±45° Working conditions: flying over an obstacle higher than 1.5 m at a horizontal speed no greater than 10 m/s and a vertical speed no greater than 3 m/s. Safe stopping distance: 2.5 m (distance between the front propellers and the obstacle after stopping) Detection direction: multi-directional 360° detection |
| Binocular vision system | |
| Measurement range | 0.5-29 m |
| Effective detection speed | ≤10 m/s |
| Field of view | Horizontal: 90°, Vertical: 106° |
| Working environment | Suitable light and discernible environment |
| Remote control apparatus | |
| Model | RM700B |
| Operating frequency | 2,4000–2,4835 GHz, 5,725–5,850 GHz |
| Maximum transmission distance | 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (without obstacles, no interference, and at a height of 2.5 m) |
| Wi-Fi protocol | Wi-Fi 6 |
| Wi-Fi operating frequency | 2,4000–2,4835 GHz, 5,150–5,250 GHz, 5,725–5,850 GHz |
| Bluetooth protocol | Bluetooth 5.1 |
| Bluetooth operating frequency | 2,4000-2,4835 GHz |
| GNSS | GPS+Galileo+BeiDou |
| Screen | Touch LCD screen with a diagonal of 7.02 inches, resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2 |
| Operating temperature | -20° to 50° C |
| Storage temperature | Less than one month: -30° to 45° C One to three months: -30° to 35° C Six months to one year: -30 ° to 30° C |
| Charging temperature | 5° to 40° C |
| Built-in battery life | 3 hours 18 minutes |
| External battery life | 2 hours 42 minutes |
| Charging type | It is recommended to use a locally certified USB-C charger with a maximum rated power of 65 W and a maximum voltage of 20 V, such as the DJI 65 W portable charger. |
| Charging time | 2 hours for built-in and external battery (when the apparatus is off and using the standard DJI charger) |
| Intelligent drone battery DB1560 | |
| Output channel | Intelligent flight battery DB1560 (BAX702-30000mAh-52,22V) |
| Capacity | 30000 mAh |
| Weight | About 12.1 kg |
| Nominal voltage | 52.22 V |
| Intelligent power supply C10000 | (optional) |
| Model number | CSX702-9500 |
| Dimensions | 400 × 266 × 120 mm |
| Weight | About 11.4 kg |
| Input/output | Input (main): 220-240 VAC, 50/60 Hz, 24 A MAX Input (auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX Input (main): 100-120 VAC, 50/60 Hz, 16 A MAX Input (auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX |
| Charging time | Fully charge the battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery) |
| Protective functions | Overvoltage, overcharge, low voltage, and high-temperature protection. |
| Charging safety | AC cord protection, power cord protection, and charging connector protection |
| Relay | (optional) |
| Model | RL01-65 |
| Dimensions | 120×110×100 mm |
| Weight | ≤575 g |
| Input voltage | 9 V3 A / 12 V2.5 A / 15 V2 A |
| Power consumption | 9 W (SRRC), 12 W (FCC) |
| Capacity | 6500 mAh |
| Operating time | 4 hours |
| Operating frequency | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance | 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (without obstacles, no interference, and at a flight height of 2.5 m) |
| Charging time | 2 hours and 20 minutes (using the standard DJI charger) |
| IP protection rating | IP55 |
