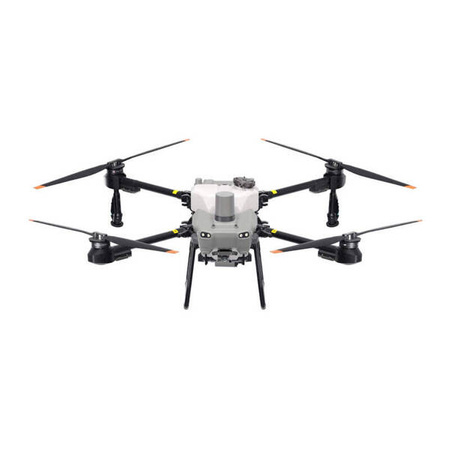

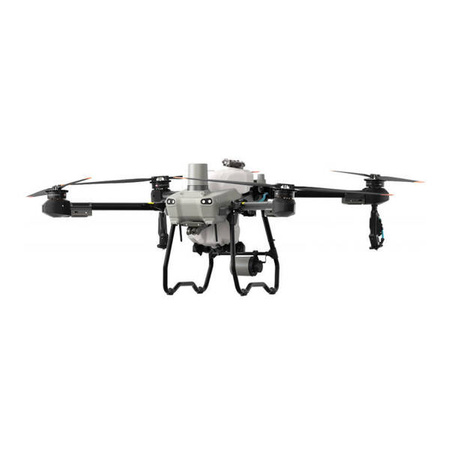

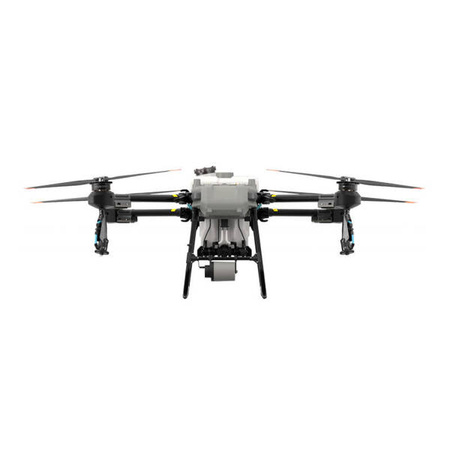

DJI Agras T25 drone
Brand
Warranty
Definition of compact agricultural drones
DJI AGRAS T25 redefines standards for compact agricultural drones. Lightweight and agile, it can be easily operated by one person. It can carry a spraying load of up to 20 kg or a spreading load of up to 25 kg.
Folding design
DJI AGRAS 25 features a lightweight, folding design. Optimized for solo operations, its unfolded dimensions have been reduced by 21% compared to its predecessor.
Stable signal
The new and upgraded four-antenna DJI O3 Transmission system works offline even in areas without cellular network coverage, offering a transmission range of up to 2 km. The anti-interference function helps ensure high signal quality when working over tall crops.
High efficiency without leaks
The dual spraying system of the DJI AGRAS T25 provides a very high efficiency of up to 16 l/min (spraying with 2 nozzles). It produces uniform and fine liquid droplets and prevents leaks. The DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers, increasing the flow rate to 24 l/min (spraying with 4 nozzles) for high-volume spraying operations, increasing spray range, work efficiency, and leaf surface coverage.
Exceptional spreading efficiency
The use of an innovative motor and spiral disc significantly improves the efficiency and smoothness of spreading.
Hundreds of reliability tests ensure safe and stable operation
Spraying and spreading missions are frequent, intense, and complex operations. The DJI Agras T25 has undergone hundreds of reliability tests to ensure the safety of the tasks performed.
Orchard missions
DJI AGRAS T25 supports obstacle avoidance and terrain following during orchard measurements on slopes of up to 20°
Set contents:
- Agras T25 drone
- Toolbox
- Remote control
- Straps
- USB-C cable
| Drone | |
|---|---|
| Weight | 24.4 kg (without battery) 32 kg (with battery) |
| Maximum takeoff weight | Spraying: 52 kg (at sea level) Spreading: 58 kg (at sea level) |
| Maximum diagonal wheelbase | 1925 mm |
| Dimensions | 2585×2675×780 mm (arms and propellers unfolded) 1475×1540×780 mm (arms unfolded and propellers folded) 1050×690×820 mm (arms and propellers folded) |
| Hovering accuracy range (with strong GNSS signal) | RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm (with radar module enabled: ±10 cm) |
| RTK/GNSS operating frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1 |
| Maximum configurable flight radius | 2000 m |
| Maximum wind resistance | 6 m/s |
| Propulsion system – motors | |
| Stator size | 100×28 mm |
| KV | 59 rpm/V |
| Power | 4600 W/motor |
| Propulsion system – propellers | |
| Material | Carbon fiber nylon filament |
| Size | 50 inches |
| Propeller rotation diameter | 1270 mm |
| Quantity | 4 pieces |
| Spraying system – tank | |
| Material | Plastic (HDPE) |
| Capacity | 20L |
| Operational load | 20kg |
| Quantity | 1 |
| Spraying system – nozzles | |
| Model | LX8060SZ |
| Quantity | 2 |
| Nozzle distance | 1368 mm (rear nozzles) |
| Droplet size | 50-500 μm |
| Effective spray width | 4-7 m (at 3 m above crops) |
| Spraying system - pumps | |
| Type | Centrifugal pump (magnetic drive) |
| Quantity | 2 |
| Flow rate of a single pump | 0-12 l/min |
| Maximum flow rate | 16 l/min (2 nozzles); 24 l/min (4 nozzles) |
| Spreading system | |
| Compatible material diameter | Dry granules 0.5-5 mm |
| Spreading tank volume | 35 l |
| Spreading tank load capacity | 25 kg |
| Spreading width | Depends on the material diameter, rotation speed of the rotating disc, size of the tank outlet, and flight height. For optimal performance, it is recommended to adjust the appropriate variables to achieve a spreading range of 5-8 meters. |
| Radar system | |
| Model | RD241608RF (front phased radar); RD241608RB (rear phased radar) |
| Terrain following | Maximum slope: 20° Detection height range: 1-50 m Working range of stabilization: 1.5-30 m |
| Obstacle avoidance | Obstacle detection range (multi-directional): 1–50 m FOV: Front phased radar: horizontally 360°, vertically ±45°, upwards ±45° (cone) Rear phased radar: vertically 360°, horizontally ±45° Working conditions: flying over an obstacle higher than 1.5 m at a horizontal speed no greater than 10 m/s and a vertical speed no greater than 3 m/s. Safe stopping distance: 2.5 m (distance between the front propellers and the obstacle after stopping) Detection direction: multi-directional 360° detection |
| Binocular vision system | |
| Measurement range | 0.5-29 m |
| Effective detection speed | ≤10 m/s |
| Field of view | Horizontal: 90°, Vertical: 106° |
| Working environment | Suitable light and discernible environment |
| Remote control apparatus | |
| Model | RM700B |
| Operating frequency | 2,4000–2,4835 GHz, 5,725–5,850 GHz |
| Maximum transmission distance | 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (without obstacles, no interference, and at a height of 2.5 m) |
| Wi-Fi protocol | Wi-Fi 6 |
| Wi-Fi operating frequency | 2,4000–2,4835 GHz, 5,150–5,250 GHz, 5,725–5,850 GHz |
| Bluetooth protocol | Bluetooth 5.1 |
| Bluetooth operating frequency | 2,4000-2,4835 GHz |
| GNSS | GPS+Galileo+BeiDou |
| Screen | Touch LCD screen with a diagonal of 7.02 inches, resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2 |
| Operating temperature | -20° to 50° C |
| Storage temperature | Less than one month: -30° to 45° C One to three months: -30° to 35° C Six months to one year: -30 ° to 30° C |
| Charging temperature | 5° to 40° C |
| Built-in battery life | 3 hours 18 minutes |
| External battery life | 2 hours 42 minutes |
| Charging type | It is recommended to use a locally certified USB-C charger with a maximum rated power of 65 W and a maximum voltage of 20 V, such as the DJI 65 W portable charger. |
| Charging time | 2 hours for built-in and external battery (when the apparatus is off and using the standard DJI charger) |
| Intelligent charger C800 | |
| Model | CHX101-7000 |
| Dimensions | 400 × 266 × 120 mm |
| Weight | Approx. 11.4 kg |
| Input/Output | Input voltage: 100-240 VAC Output voltage: 59.92 V Output current: max. 100 A |
| Charging time | Fully charge the battery in 9 to 12 minutes |
| Protection function | This function is designed to respond to problems such as overheating, overvoltage, low voltage, short circuit, fan stall, etc. |
| Operating temperature | -20° to 45° C |
| Charging safety | Connector protection available |
| Input/Output | Input (main): 220-240 VAC, 50/60 Hz, 24 A MAX Input (auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX Input (main): 100-120 VAC, 50/60 Hz, 16 A MAX Input (auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX |
| Charging time | Fully charge the battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery) |
| Protective functions | Overvoltage, overcharge, low voltage, and high-temperature protection. |
| Charging safety | AC cord protection, power cord protection, and charging connector protection |
| Relay | (optional) |
| Model | RL01-65 |
| Dimensions | 120×110×100 mm |
| Weight | ≤575 g |
| Input voltage | 9 V3 A / 12 V2.5 A / 15 V2 A |
| Power consumption | 9 W (SRRC), 12 W (FCC) |
| Capacity | 6500 mAh |
| Operating time | 4 hours |
| Operating frequency | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance | 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (without obstacles, no interference, and at a flight height of 2.5 m) |
| Charging time | 2 hours and 20 minutes (using the standard DJI charger) |
| IP protection rating | IP55 |
| Intelligent drone battery DB800 | |
| Model | Intelligent flight battery DB800 |
| Weight | Approx. 6.6 kg |
| Capacity | 15000 mAh |
| Nominal voltage | 52.22 V |
