Introducing the DJI Matrice 4 series, a compact and intelligent flagship series of multi-sensor drones designed for enterprise applications. The series includes the Matrice 4T and Matrice 4E, both equipped with advanced features like intelligent detection and measurement using a laser rangefinder.
The DJI Matrice 4 Thermal is an advanced thermal imaging drone designed for the most demanding professional applications. With sophisticated camera systems, AI, and comprehensive navigation and measurement capabilities, it is ideal for industries such as technical inspections, emergency response, environmental monitoring, rescue operations, and security services.
| Component | Details |
|---|---|
| Wide-Angle Camera |
|
| Medium Tele Camera |
|
| Tele Camera |
|
| Infrared Thermal Camera |
|
| Laser Range Finder |
|
| NIR Auxiliary Light |
|
The extended flight time and long transmission range allow for the completion of complex missions without frequent landings or battery changes.
Features include:
The built-in AI model can detect vehicles, ships, and objects during search-and-rescue operations or routine flights. It also supports switching to other models, expanding AI application scenarios. Advanced algorithms enable:
The laser rangefinder provides precise real-time measurements. Simple operations, such as point marking, line drawing, and area calculation, allow tasks like marking target locations for inspection or calculating fire areas. Additionally, users can share information using the DJI Pilot QR code or FlightHub 2 to improve collaboration and work efficiency.
The Matrice 4 series includes significant updates to night mode. The Full-Color Night Camera now supports three modes and two levels of enhanced noise reduction. Equipped with an IR Cut Filter and NIR auxiliary light, it excels in low-light conditions, providing excellent visibility for search and rescue missions.
Additionally, Matrice 4 series cameras feature larger apertures and intelligent low-light functionalities, enhancing efficiency during dusk and nighttime operations. The new NIR lighting enables illumination up to 100 meters, offering superior visibility in dark environments.
The Matrice 4T supports High-Res infrared mode with image resolution up to 1280 × 1024. It also offers ultra-high resolution, revealing subtle temperature details for various operations. Each unit undergoes accuracy calibration during production, utilizing built-in sensors for real-time temperature measurements with exceptional precision.
The Matrice 4 series is equipped with six high-resolution fisheye sensors for low-light operations, significantly enhancing visual positioning and obstacle avoidance capabilities. It enables automatic obstacle avoidance, intelligent rerouting, and safe returns in urban low-light conditions.
The Matrice 4 series features a medium tele camera that enhances mid-range inspection capabilities. It can detect bolts and cracks from a distance of 10 meters and clearly read instrument data in substations. The telephoto camera offers 48 MP resolution, capturing incredible details from objects up to 250 meters away. The improved stabilization ensures sharp images even at 10× zoom or higher.
In conditions such as smog or atmospheric humidity, the Electronic Dehazing feature supports three modes (Low, Medium, High) to improve image clarity, adapting to different operational environments and requirements.
The wide-angle camera of Matrice 4E supports rapid photography with a 0.5-second interval in both orthophoto and oblique photography modes, enabling fast aerial measurements from multiple angles. Additionally, mapping flight speeds can reach up to 21 meters per second.
The Matrice 4 series supports new 5-directional oblique photography. The gimbal can intelligently rotate and capture images from multiple angles based on the measurement area, achieving the effect of multiple shots in a single flight.
The Matrice 4E supports 3-directional orthophoto capture, allowing side capture during orthophoto data collection tasks, reducing side overlaps. A single flight can perform mapping operations for an area of 2.8 km².

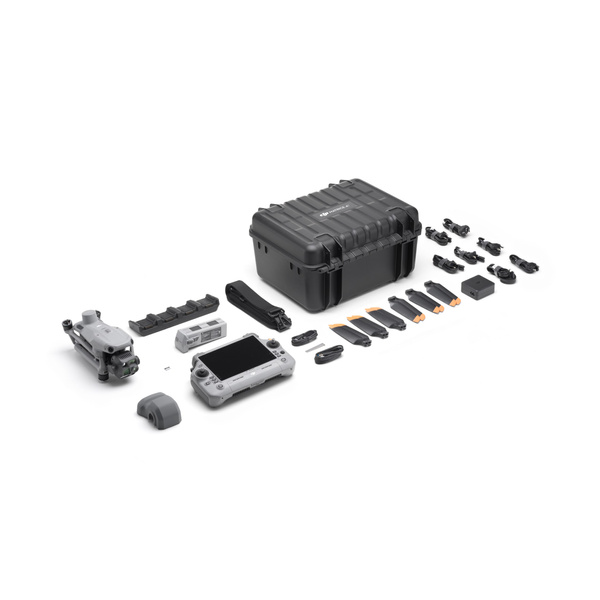

The standard DJI Matrice 4T kit includes everything needed to start work:
This drone is suitable for a wide range of applications, such as:
| DRONE | |
|---|---|
| Take-off Weight | 1219 g (standard propellers), 1229 g (Low-Noise propellers) |
| Maximum Take-off Weight | 1420 g (standard propellers), 1430 g (Low-Noise propellers) |
| Dimensions | Folded: 260.6 × 113.7 × 138.4 mm; Unfolded: 307.0 × 387.5 × 149.5 mm |
| Maximum Payload Weight | 200 g |
| Maximum Horizontal Speed | 21 m/s |
| Maximum Flight Time | 49 min (standard propellers) |
| GNSS | GPS, Galileo, BeiDou, GLONASS (RTK) |
| Operating Temperature | -10°C to 40°C |
| CAMERA | |
| Image Sensor | 1/1.3 CMOS (48 MP, Matrice 4T); 4/3 CMOS (20 MP, Matrice 4E) |
| Wide-Angle Lens | FOV 82°, Focal Length 24 mm, f/1.7 |
| ISO Range | Up to 409600 (4T), Up to 204800 (4E) |
| Shutter Speed | 2-1/8000 s |
| Maximum Photo Resolution | 8064 × 6048 (4T), 5280 × 3956 (4E) |
| Digital Zoom | 16x (112x hybrid zoom for telephoto lens) |
| BATTERY | |
| Capacity | 6741 mAh |
| Energy | 99.5 Wh |
| Cycle Count | 200 |
| CONTROLLER | |
| Screen | 7.02 inches, 1920 × 1200 px, 1400 nits |
| Built-in Battery | 6500 mAh, 3.8 hours runtime |
| Operating System | Android 11 |
| Ports | HDMI, USB-C, SD |
