DJI D-RTK 3 Station DJI Matrice 4
DJI D-RTK 3 Station
The multifunctional D-RTK 3 Station can serve as a base station to provide centimeter-level positioning accuracy for multiple drones simultaneously or extend the operational range of drones in relay station mode.

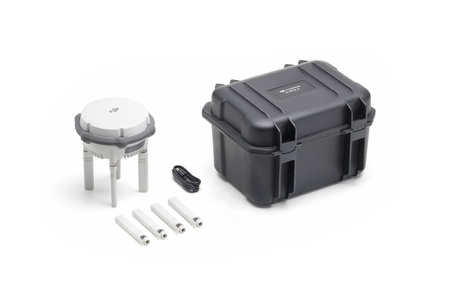

Package Contents:
- D-RTK 3 Station
- Set of 4 OcuSync antennas
- Carrying Case
| Parameter | Details |
|---|---|
| GNSS Receiver | GNSS Frequencies: GPS: L1C/A, L2C, L5; BDS: B1I, B2I, B3I, B1C, B2a, B2b; GALILEO: E1, E5a, E5b, E6; GLONASS: L1, L2; QZSS: L1C/A, L2C, L5; L-Band Mode: Base Station Mode and Relay Station Mode |
| Base Station Accuracy | Single Point: Horizontal: 1.5 m (RMS), Vertical: 3.0 m (RMS) Differential (Satellite): Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS), Convergence Time: 20 min RTK Calibration: Horizontal: 1.0 cm (RMS) + 1 ppm, Vertical: 3.0 cm (RMS) + 1 ppm |
| RTK Accuracy | Static Measurement: Horizontal: 0.8 cm (RMS) + 1 ppm, Vertical: 1.5 cm (RMS) + 1 ppm Inclination Measurement: Range: 0°-60°; Horizontal: 8 mm + 0.7 mm/° tilt |
| Precise Satellite Positioning | Supported Frequencies: BDS B2b, GALILEO E6, L-Band Convergence Time: 20 minutes Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS) |
| Differential Data Transmission Format | RTCM 3.2 (DAT), RTCM v3.0, v3.1, v3.2, MSM4-MSM7 |
| Initialization Reliability | >99.9% |
| Video Transmission System | O4 Enterprise Operating Frequencies: 2.4 GHz / 5.8 GHz Transmission Power: |
| Maximum Transmission Range | FCC: 15 km (base station); 25 km (drone to relay station) CE: 8 km (base station); 10 km (drone to relay station) |
| Antenna | OcuSync 4 directional antennas × 4, SMA connector |
| Electrical Properties | Power: Relay Station 14.5 W; Base Station 7 W Battery: LiPo, 6500 mAh, 46.8 Wh |
| General Characteristics | Operating Temperature: -20° to 55°C IP Rating: IP67 Dimensions: 163 × 89 mm Weight: 1.26 kg |
