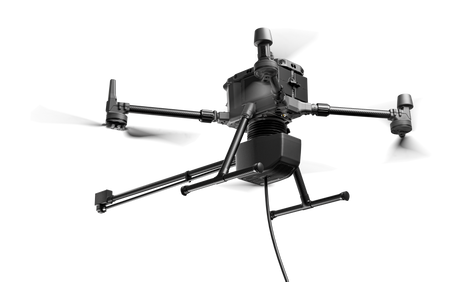

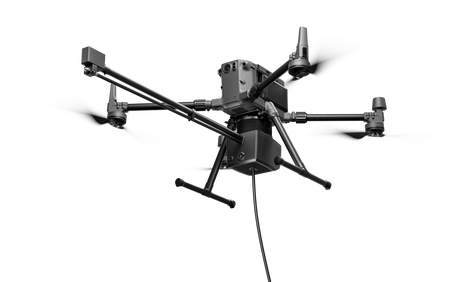

Wisson Orion AP3-P3 PRO – Cleaning System for DJI Matrice 350 RTK | Drone for Washing Facades and Photovoltaic Panels
- An efficient cleaning system for a drone designed for washing building facades, photovoltaic panels, and high structures, providing high-pressure cleaning and continuous operation thanks to the tethered system. Compatible with DJI Matrice 350 RTK.
The Wisson Orion AP3-P3 is a modern tethered cleaning system designed for precise and effective washing of building facades, solar panels, windows, and other high structures. Compatibility with drones with a payload capacity of 3-10 kg, such as DJI Matrice 350 RTK , makes it an indispensable tool for companies specializing in cleaning high-altitude structures. Thanks to the tether, liquid is continuously supplied to the device, ensuring long-term and uninterrupted operation. Combined with high pressure of 13 MPa, a flexible gimbal with a wide range of motion, and interchangeable modular nozzles, the Orion AP3-P3 guarantees an efficiency of up to 600 m²/h.
Wide Range of Applications for Continuous Operation
Uninterrupted Work
The tether system ensures a continuous water flow, eliminating the need for the drone to land.
Express Cleaning – 7.5 m² per Minute
An efficiency of 7.5 m²/min enables quick and effective removal of dirt from large surfaces.
Full Control from the Controller
Remote operation enables precise adjustment of the spray angle and pressure in real-time.
Powerful Jet – 13 MPa Pressure
Effectively removes tough dirt thanks to a strong 13 MPa pressure.
Ready to Operate in 60 Seconds!
Intuitive and fast installation – operational readiness in just one minute.
Advanced Cleaning Even in the Toughest Conditions
Full Compatibility with DJI Matrice 350 RTK and 3-10KG Drones
The Wisson Orion AP3-P3 is designed for DJI Matrice 350 RTK , ensuring a perfect fit for professional cleaning operations. Its lightweight and compact design allows for precise navigation even in narrow spaces.
Stable Operation at High Altitudes
Effective cleaning at heights of up to 45 meters – safe and precise work in all conditions.
Modular Nozzles for Various Applications
The ability to swap and customize nozzles for specific tasks ensures maximum efficiency.
Versatile Cleaning of Different Surfaces
Adjustable nozzles allow efficient cleaning of both lower and upper surfaces.
Maximum Safety for High-Altitude Work
Remote Control – No More Risky Operations at Heights
The Wisson Orion AP3-P3 eliminates the need for manual work at heights, reducing accident risk and improving operator safety.
Flight Stability with Adaptive Balance
The moving gimbal compensates for vibrations and eliminates flight disruptions caused by side winds and aerosol backpressure, ensuring precise and safe cleaning.
Real-Time Laser Distance Measurement
The advanced sensor system continuously measures the distance to the cleaned surface, ensuring optimal spray parameters and maximum cleaning efficiency.
Package Contents – Wisson Orion AP3-P3 Pro
What’s Included?
1x Wisson Orion AP3-P3 Cleaning System
1x Spray nozzle set (angles: 0°, 15°, 25°, 40°)
5x Hose connectors
1x Y-shaped valve
1x Hose reducer (4" to 6")
1x Drone mounting adapter
1x Hex key (Allen wrench)
8x M3×12 mounting screws
1x User manual
1x Warranty card
1x Certificate of conformity
*All included inside Box C2*
Additional Equipment (Box C1 – 76×74×60 cm)
2x 10 m high-pressure hose
2x 1/2" standard hose (3 m)
1x Power adapter for hose reel (48V / 20A)
1x 5-liter measuring cylinder
1x Foldable water bucket (100 L, 50×55 cm)
2x Propeller guards
Additional Equipment (Box C2 – 76×74×60 cm)
1x Additional motorized hose reel
1x Power adapter for hose reel (48V / 20A)
4x Fixed pulleys with ropes (50 × 80 mm)
1x EVA shock-absorbing tape (50 mm × 2 m, 10 mm thick)
Required (Not Included)
Cleaning agents (e.g., detergent)
1x 1/2" standard hose – 50 m (recommended)
Note
The drone is not included – the system is compatible with DJI Matrice 350 RTK and requires it to operate.
WISSON ORION AP3-P3 TECHNICAL SPECIFICATIONS
| Dimensions | 936 × 146 × 192 mm |
| Weight | 1.3 kg |
| Maximum Hose Length | 100 m |
| Maximum Pressure | 13 MPa |
| Rotational Range | +10~50° (Up/Down) |
| Installation Time | 1 min |
| IP Protection Rating | IP55 |
| Wind Resistance | 6 m/s |
| Maximum Speed | 10 m/s |
| Maximum Operating Height | 45 m |
| Operational Time on One Battery Set | 20 min |
| Operating Temperature | 0~50°C |
