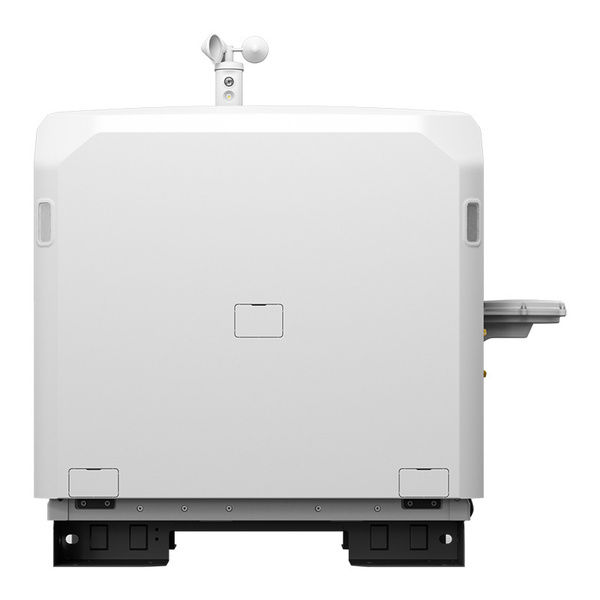

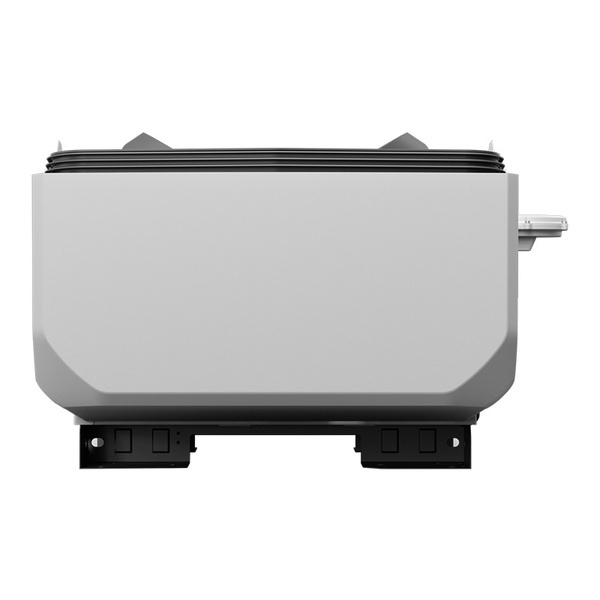

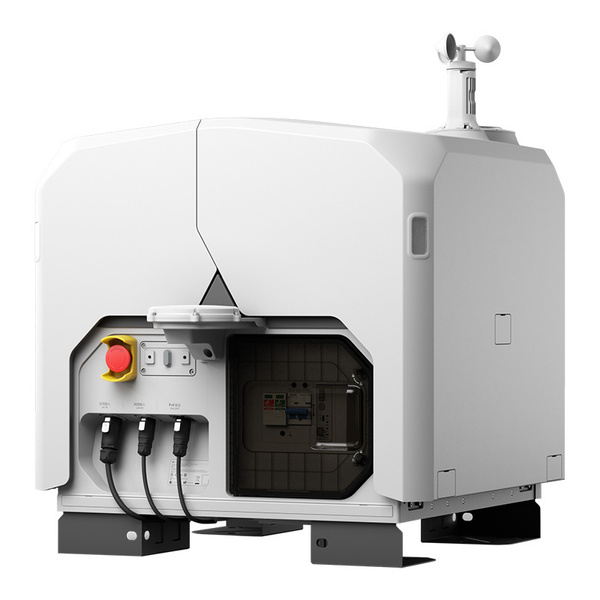

DJI Dock 3 docking station

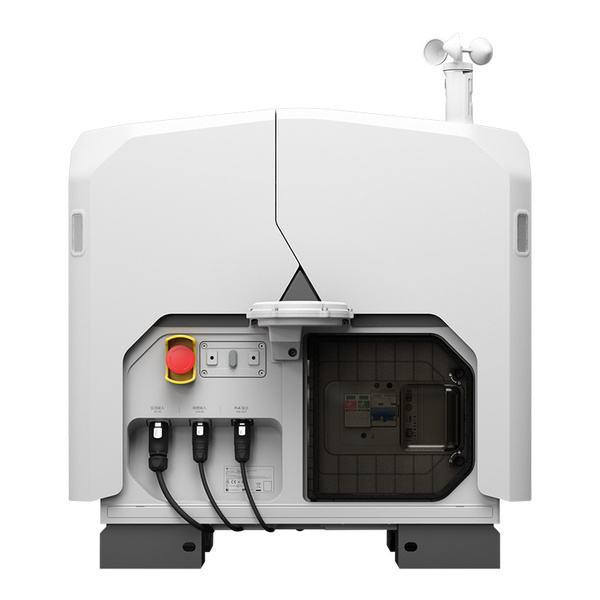

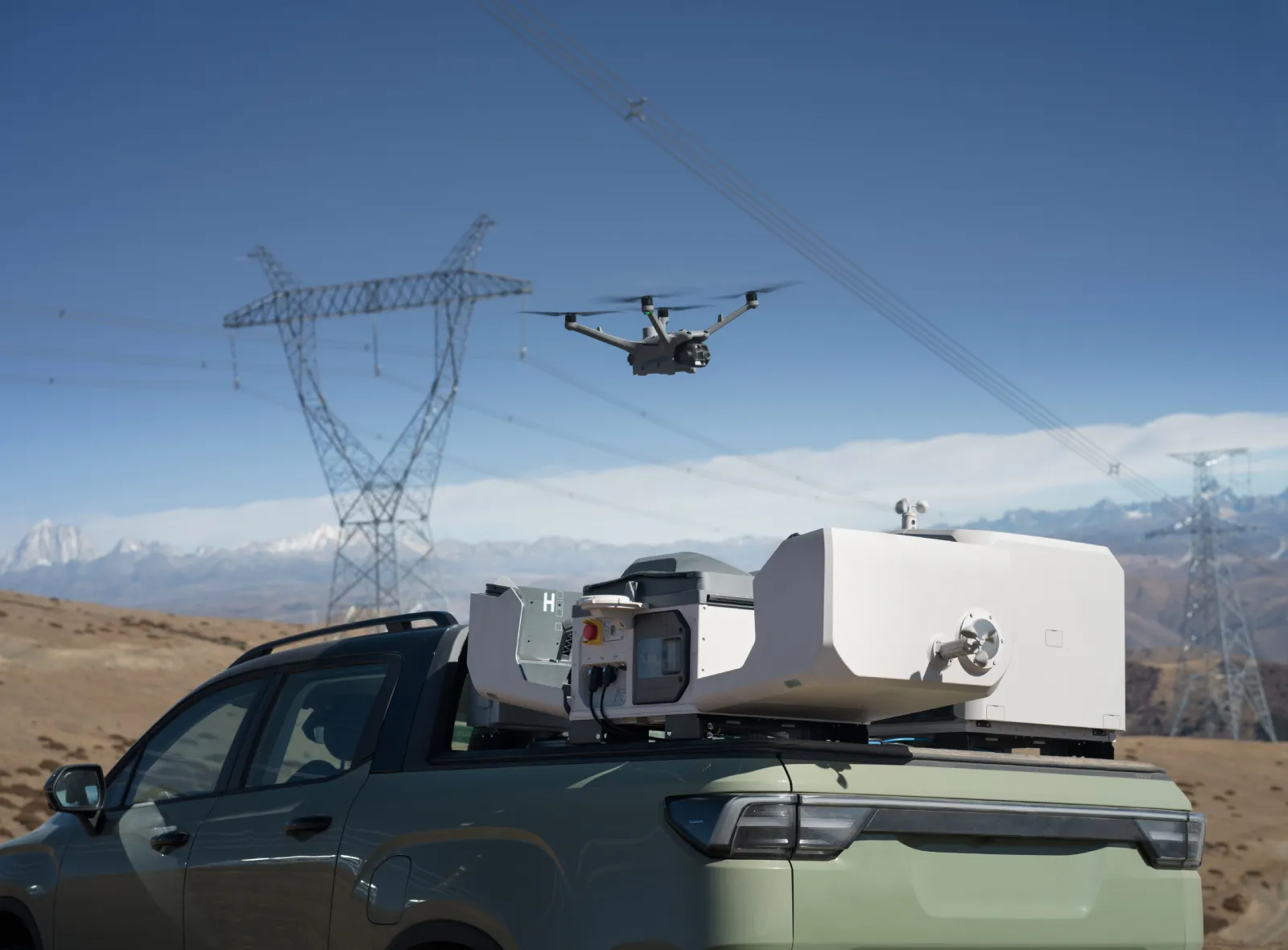

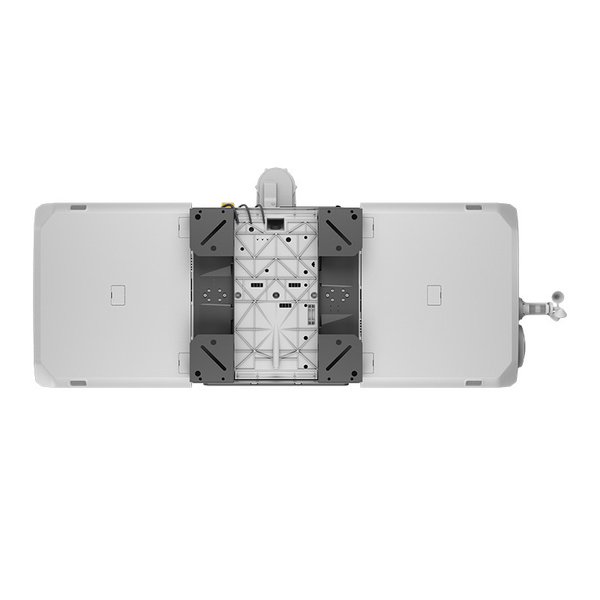

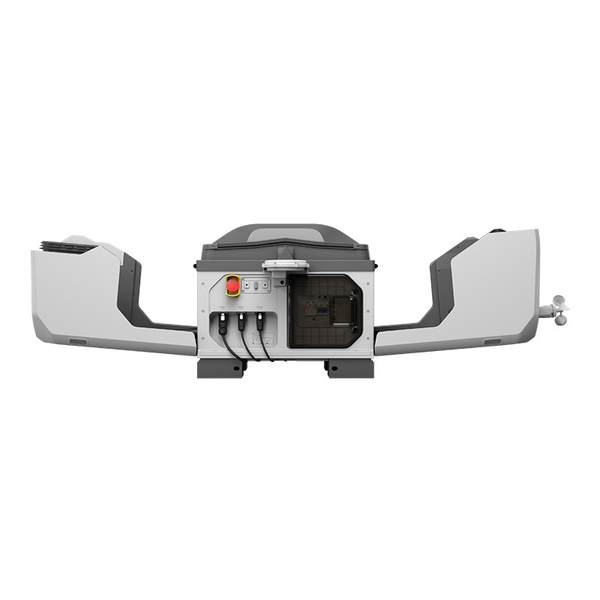

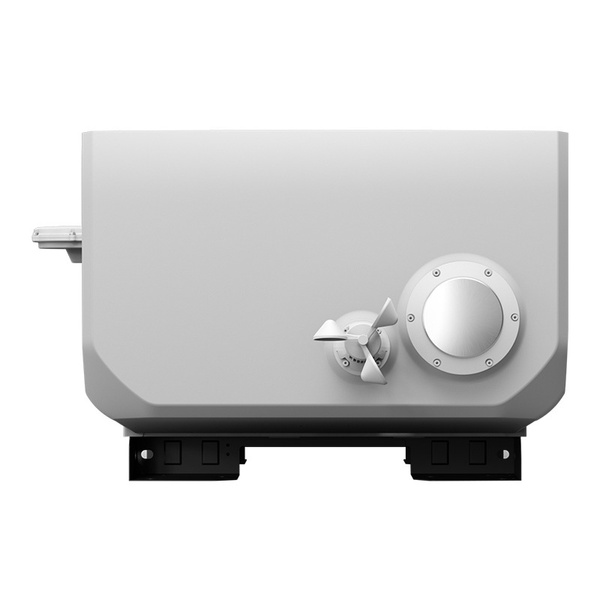

DJI Dock 3
The first docking station designed for vehicle mounting.

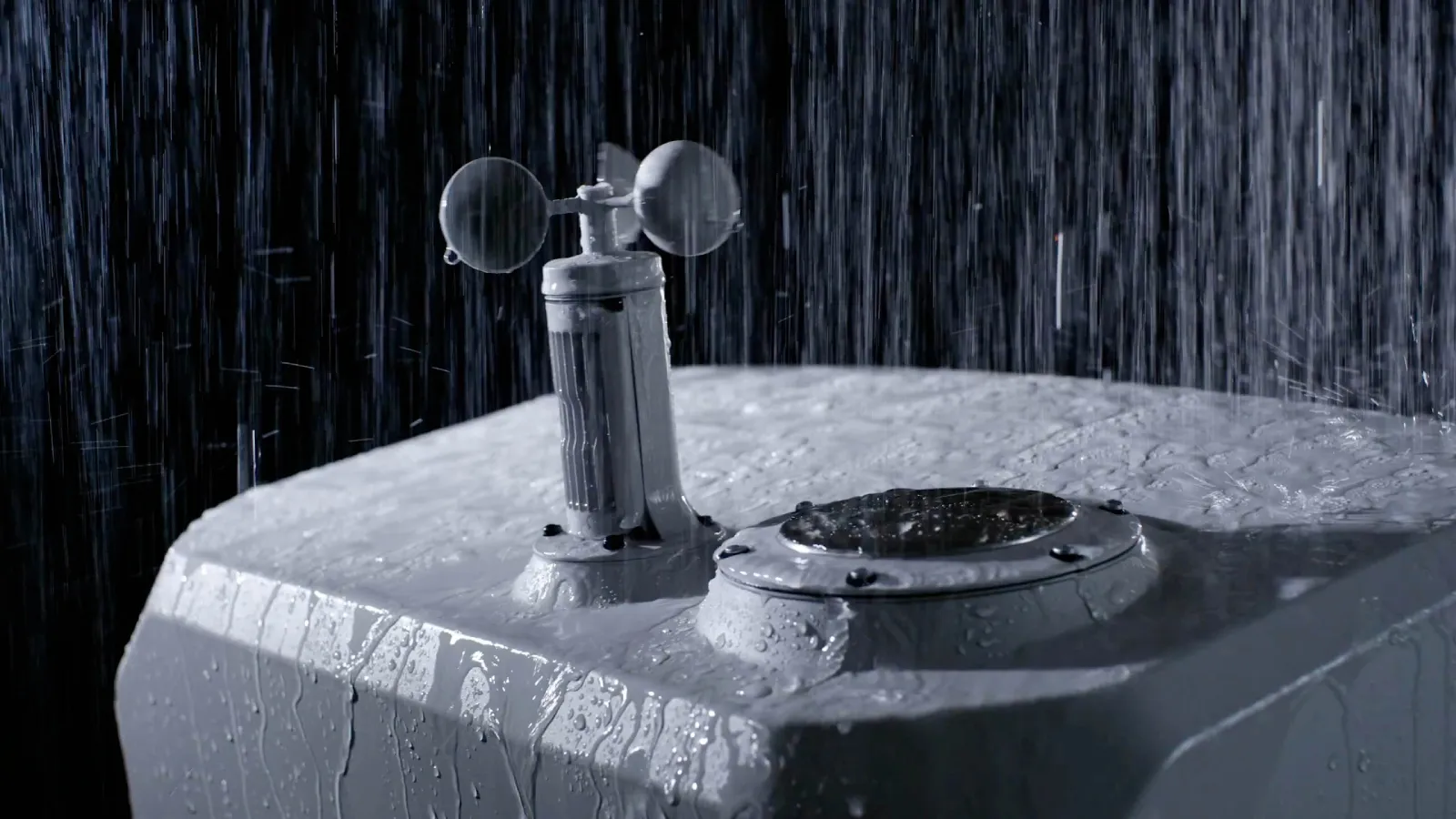

Full Control in Any Conditions
DJI Dock 3 is a rugged and reliable device with an IP56 rating, resistant to extreme conditions: wind up to 12 m/s and temperatures from –30 °C to 50 °C.

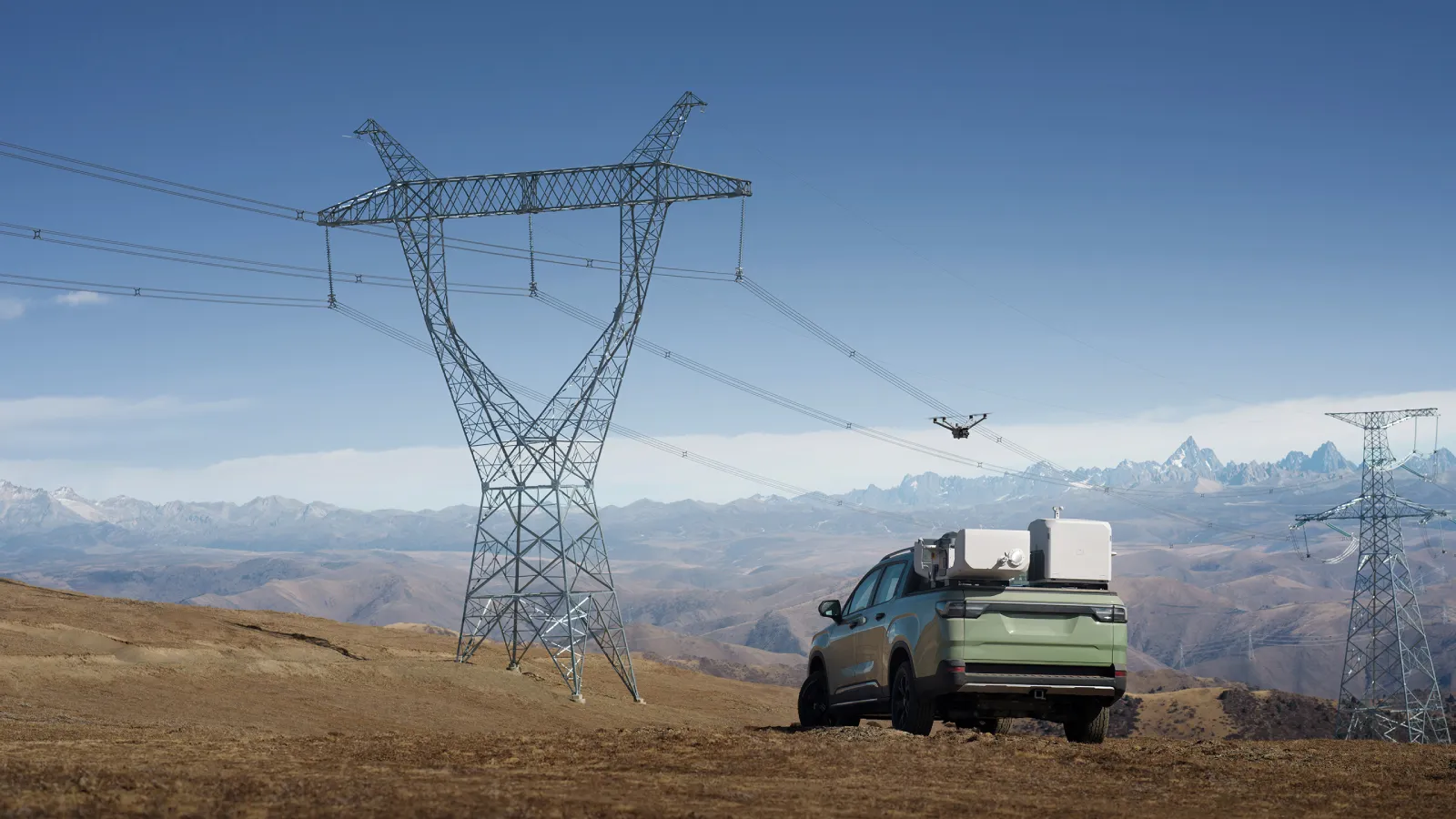

Easy Deployment, Stable Data Transmission
Revolutionizes drone operations with vehicle mounting, D‑RTK 3 Relay for improved signal, and easy smartphone setup — ideal for long-distance missions and inspections.
Fixed D‑RTK3 Module Deployment
The new D‑RTK 3 Relay Fixed Deployment enables flexible placement of DJI Dock 3, offering transmission range up to 25 km in challenging terrains.

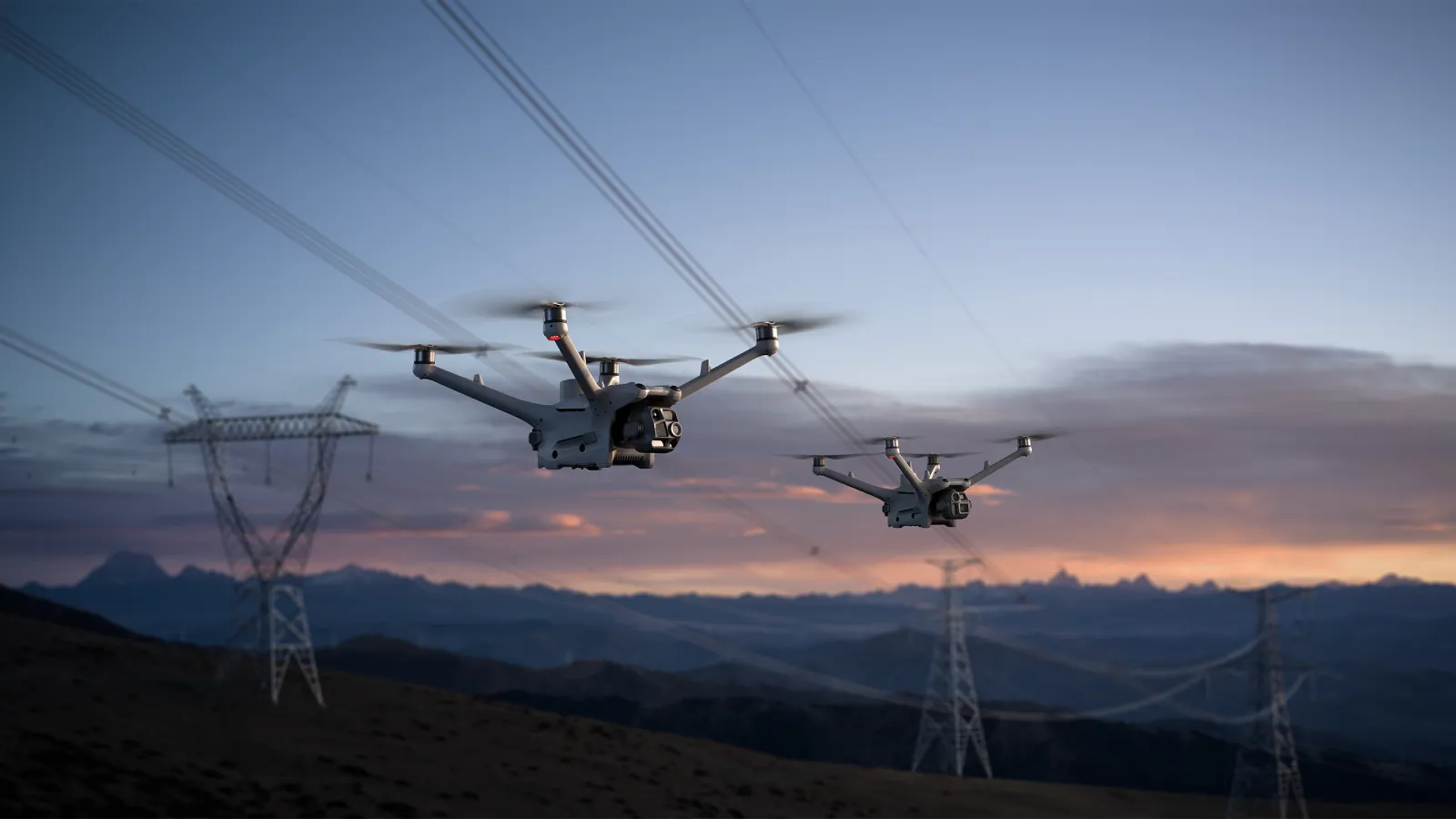

New DJI Matrice 4D Series Drones
The Matrice 4D and 4TD are perfect matches for DJI Dock 3. Advanced cameras, precision mapping, and public safety capabilities.

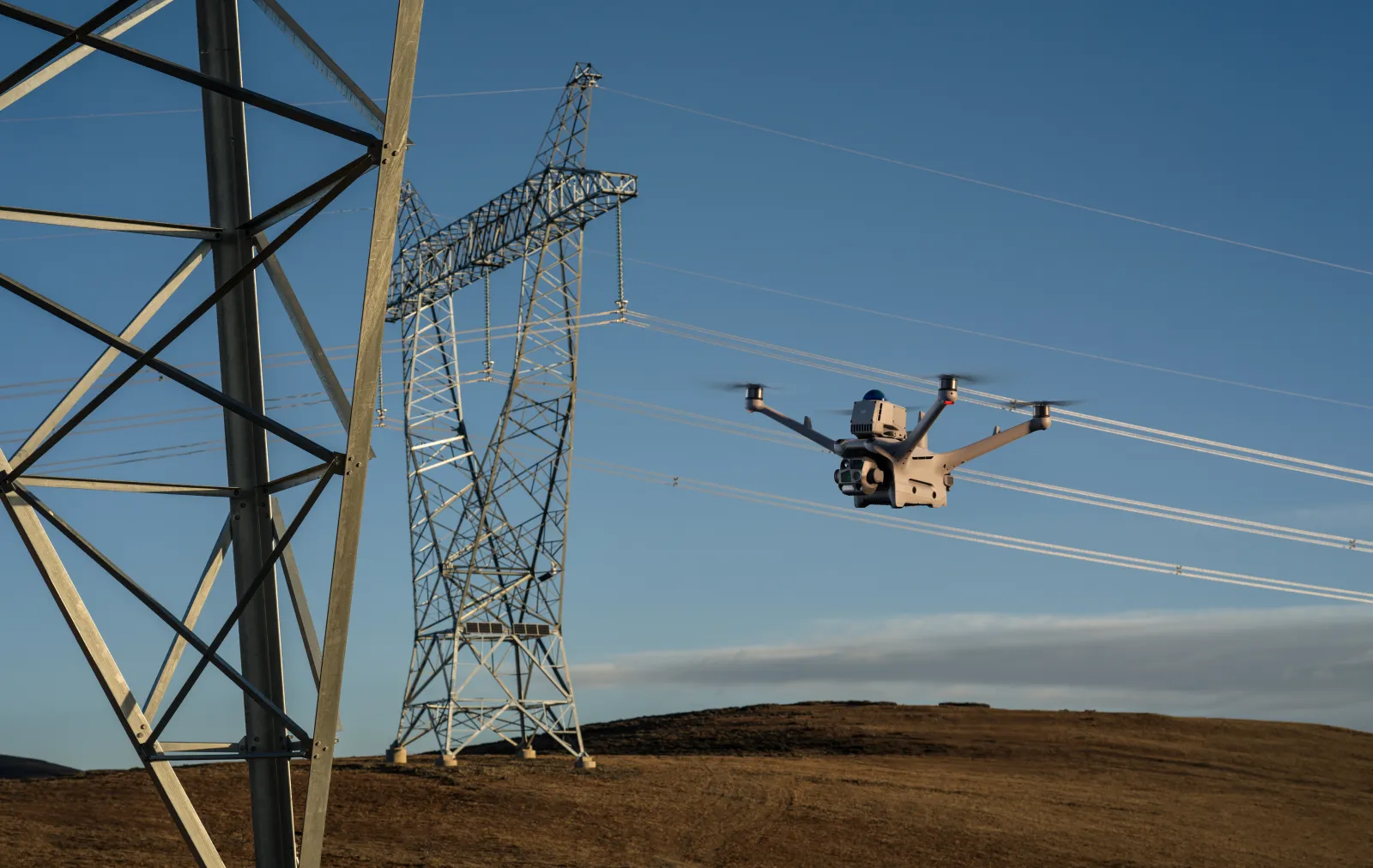

LiDAR Obstacle Detection
Optional LiDAR + EM wave (1–10 mm) module enables precise obstacle avoidance (e.g., power lines) at speeds up to 15 m/s.
Clarity and Precision in Every Task
Matrice 4D offers excellent low-light positioning and observation — reliable day and night.
Stable Imagery at Long Distances
Telephoto-stabilized cameras on Matrice 4D are ideal for long-range inspections and defect detection.
Precision Geospatial Surveys
Utilizing oblique photography, orthophotography, and intelligent flight planning — maximizing terrain modeling efficiency.

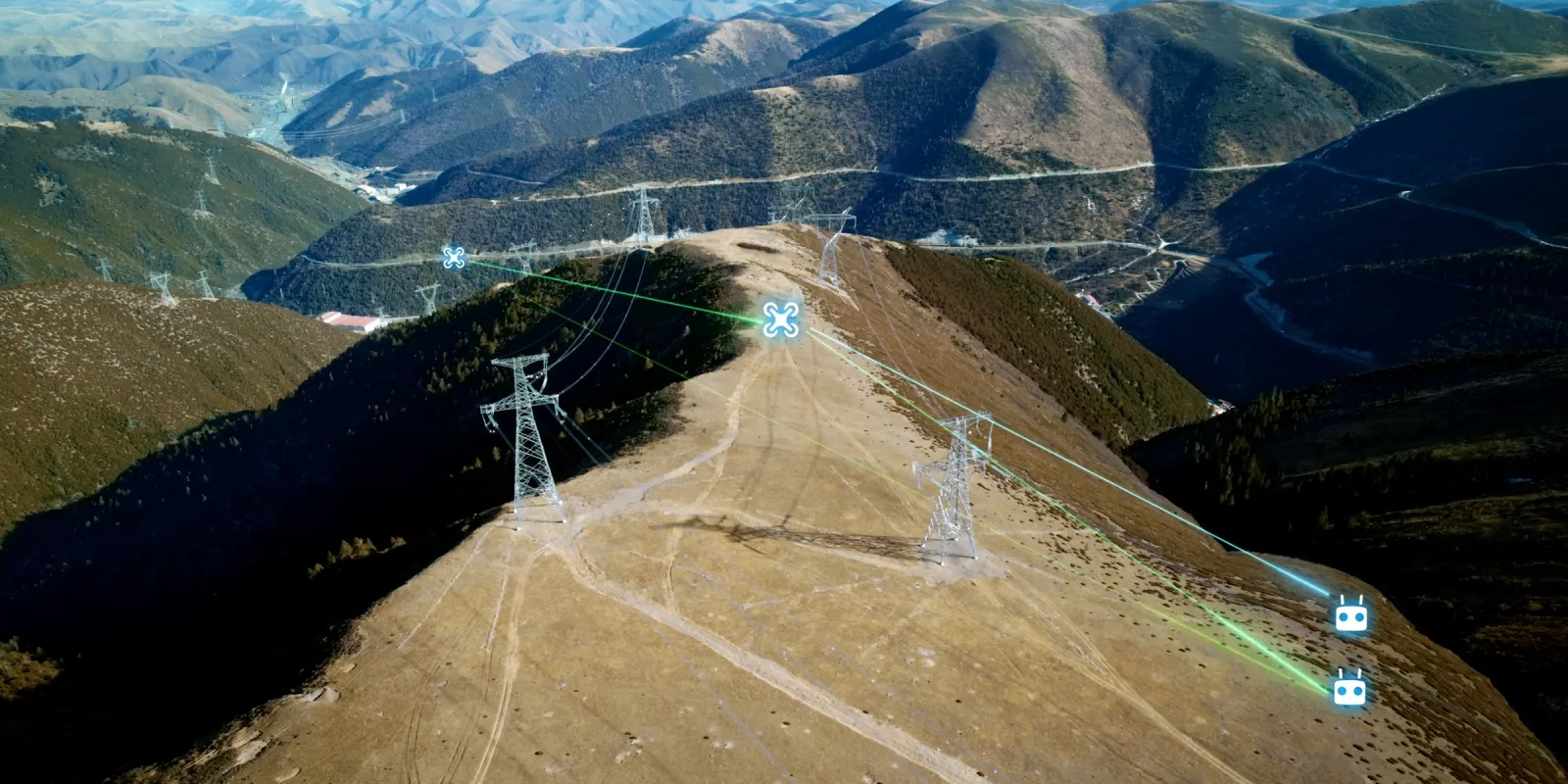

Seamless Connectivity in Mountainous Areas
DJI Relay in Matrice 4D significantly extends operational range — perfect for rescue missions and inspections in rugged terrain.
Technical Specifications – DJI Dock 3
| Model | DJI Dock 3 |
| Total Weight | 55 kg (without drone) |
| Dimensions | Open lid: 1760×745×485 mm Closed lid: 640×745×770 mm |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Power Input | Max 800 W |
| Operating Temperature | −30 °C to 50 °C |
| Ingress Protection | IP56 |
| Number of Drones | 1 |
| Max Wind Speed for Landing | 12 m/s |
| Max Operating Altitude | 4500 m |
| RTK Frequencies | GPS, BeiDou, GLONASS, Galileo, QZSS |
| RTK Accuracy | Horizontal: 1 cm + 1 ppm Vertical: 2 cm + 1 ppm |
| Output Voltage | 35 V DC |
| Charging Time | 27 minutes |
| Transmission Frequencies | 2.4 GHz / 5.2 GHz / 5.8 GHz |
| Antenna System | 9 antennas, 2T4R |
| Cooling System | Compressor-based cooling, 48 V DC |
| Backup Battery | 12 V, 12 Ah lead-acid, 4 h runtime |
| Network Access | Ethernet 10/100/1000 Mb/s; 4G (requires DJI Cellular Dongle 2) |
| Sensors | Wind, rain, ambient & enclosure temperature, humidity, immersion |
| Security Cameras | External & internal: 1920×1080, 151° FOV, white LED light |
| Surge Protection | AC port 20 kA, Ethernet 10 kA – compliant with EN/IEC 61643 |
| Supported Software | DJI Enterprise App, FlightHub 2, DJI Cloud API |
| Expandability | Supports edge computing and external network switch integration |
-
-
