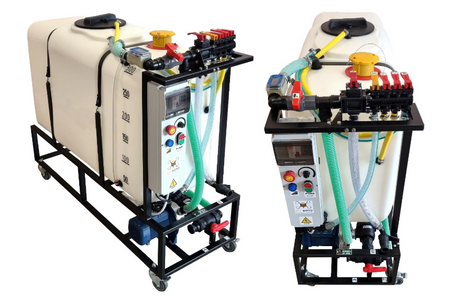

BeeAgro PM‑200/300 EXP Portable Mixing Station 220V
- Bee Agro mixers for agricultural drones
Brand
PM‑200/300 EXP Portable Mixing Station 220V
The PM (Portable Mixer) series was designed for agricultural crop-spraying drones. Field experience led to the creation of a device that significantly improves the preparation of working liquids, boosting both efficiency and professionalism. It enables the on-site preparation of high-quality plant protection or liquid fertilizer solutions.
Key Benefits
- High‑performance stainless steel pump
- Accurate clean‑water meter from external tank
- Mixing and cleaning systems for tank & canisters
- Remote drone refueling via controller
- Easy setup and operation
- Precise mixing of solution components
- Minimal operator contact with chemicals
- Optimized drone refuel time
- Modular construction
Technical Specification
| Parameter | PM‑200 EXP | PM‑300 EXP |
|---|---|---|
| Main tank volume | 200 L | 300 L |
| Pump capacity | 80 L/min | |
| Power supply | 220 V (mains/generator) | |
| Weight | 40.0 kg | 45 kg |
| Dimensions (L × W × H) | 119 × 42 × 90 cm | 131 × 46 × 100 cm |
Included in the Kit
| Component | PM‑200 EXP | PM‑300 EXP |
|---|---|---|
| Basic Kit | ||
| Centrifugal pump 70 L/min | ✓ | ✓ |
| Pump performance controller | ✓ | ✓ |
| Remote controller (x2) | ✓ | ✓ |
| Electronic clean‑water meter | ✓ | ✓ |
| Pump line filter | ✓ | ✓ |
| Main tank bucket filter | ✓ | ✓ |
| Clean-water filter | ✓ | ✓ |
| Float level sensor | ✓ | ✓ |
| Injector mixer | ✓ | ✓ |
| Main tank cleaning system | ✓ | ✓ |
| Rubber supports (x4) | ✓ | ✓ |
Optional Accessories (recommended)
| Accessory | |
|---|---|
| Canister cleaning system | Available separately for an additional fee |
| Hydraulic powder mixer | |
| Refueling gun | |
| Nozzle adapter (Karcher type) | |
| Transport wheels (x4) | |
| 10 m pumping hose (Connector & Camlock) | |
| 10 m refuel hose (Connector & Camlock) | |
| Drone tank tap‑coupling | |
