BeeAgro Mixing Station PM-200 Conical
- Bee Agro mixers for agricultural drones
Brand
Mixing Station PM-200 Conical

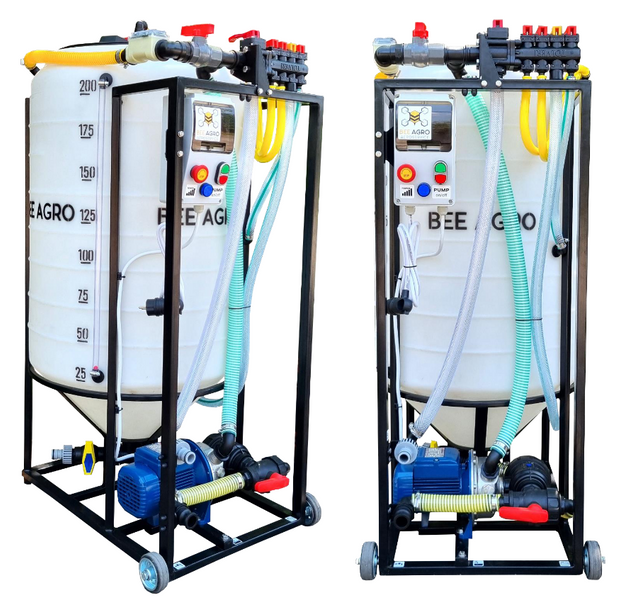

The PM (Portable Mixer) mobile mixer line was developed for agricultural drone spraying applications. Field experience has enabled the creation of a device that significantly simplifies and improves the process of preparing spray liquids, enhancing both professionalism and operational efficiency. The PM-200 Conical mixer is a mobile mixing station designed to prepare high-quality plant protection or liquid fertilizer solutions directly in the field.
Advantages
- High-performance stainless steel pump
- Electronic clean water flow meter
- Remote drone refueling via remote control
- Easy setup and operation
- Intensive and precise mixing of ingredients
- Easy cleaning thanks to conical bottom
- Minimal operator contact with chemicals
- Optimized drone refueling time
- Modular design
Technical Specifications
| Parameter | PM-200 Conical |
|---|---|
| Main tank capacity | 200 l |
| Pump capacity | 80 l/min |
| Power supply | 0.25 kW – 220V (mains / generator) |
| Weight | 45 kg |
| Dimensions (L × W × H) | 75 × 59 × 125 cm |
Kit Contents
| Item | PM-200 Conical |
|---|---|
| Basic set | |
| Centrifugal pump 80 l/min | ✓ |
| ECO controller (no pump speed regulation) | ✓ |
| Remote control (2 pcs) | ✓ |
| Electronic clean water meter | ✓ |
| Pump line filter | ✓ |
| Main tank bucket filter | ✓ |
| Float level | ✓ |
| Basic mixing system | ✓ |
| Grounding cable | ✓ |
| Transport wheels (2 pcs) | ✓ |
| Rubber supports (2 pcs) | ✓ |
Optional Equipment (Recommended)
| Item | |
|---|---|
| EXP controller (with pump speed regulation) | Available separately at additional cost |
| Main tank washing system | |
| Middle mixing in reverse direction | |
| Hydraulic mixer for powder products | |
| Refueling gun | |
| Nozzle adapter (Karcher) | |
| Tap coupling for drone tank | |
| Pumping hose with camlock, 8 m | |
| Refueling hose with connector/camlock, 10 m | |
