BeeAgro Portable Mixing Set PM‑200+120 PRE EXP
- Bee Agro mixers for agricultural drones
Brand
Portable Set PM‑200+120 PRE EXP

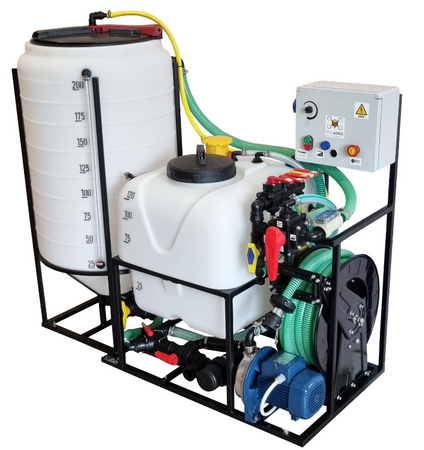

The PM (Portable Mixer) line has been developed for agricultural applications using spraying drones. Field experience has led to the creation of a solution that significantly improves the preparation process of working fluid, enhancing both efficiency and professionalism. The PM‑200+120 PRE EXP is a mobile mixing station that allows for the preparation of high-quality plant protection or liquid fertilizer solutions in field conditions.
Key Benefits
- High-performance stainless steel pump
- Electronic clean water flow meter
- Remote drone refueling using a controller
- Easy setup and operation
- Efficient and high-quality mixing of solution components
- Easy cleaning thanks to conical tank bottom
- Minimal operator exposure to chemicals
- Optimization of drone refueling time
- Modular construction
Technical Specifications
| Parameter | PM‑200+120 PRE EXP |
|---|---|
| Main tank capacity | 200 L |
| Premixer tank capacity | 120 L |
| Pump performance | 150 L/min |
| Power supply | 220 V |
| Power source | Generator / Grid |
| Weight | 100 kg |
| Dimensions (L × W × H) | 142 × 60 × 125 cm |
Basic Set Includes
| Component | PM-200+120 PRE EXP |
|---|---|
| Included in the basic set | |
| Centrifugal pump 80 L/min | ✓ |
| EXP control unit (with pump speed regulation) | ✓ |
| Remote control (2 pcs) | ✓ |
| Electronic meter for clean water monitoring | ✓ |
| Pump line filter | ✓ |
| Main tank bucket filter | ✓ |
| Premixer tank bucket filter | ✓ |
| Float level indicators (both tanks) | ✓ |
| Main tank mixing system | ✓ |
| Injector mixing system (premixer) | ✓ |
| Main tank washing system | ✓ |
| Premixer tank washing system | ✓ |
| Canister washing system (for chemicals) | ✓ |
| Hydraulic mixer for powder products | ✓ |
| Refueling gun | ✓ |
| Tap-coupling for drone tank | ✓ |
| Pumping hose with camlock, 5 m | ✓ |
| Refueling hose reel with camlock, 10 m | ✓ |
| 220 V power cable | ✓ |
| Rubber supports (2 pcs) | ✓ |
