BeeAgro BeeAgro UNO Trailer
- Bee Agro mixers for agricultural drones
Brand
BeeAgro UNO Trailer

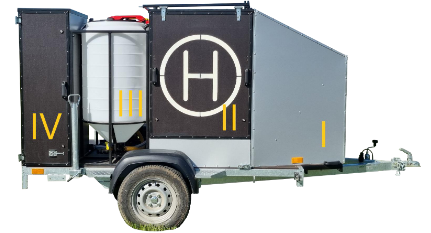

The BeeAgro UNO Trailer is a standardized equipment set mounted on a wheeled car trailer platform, designed for plant protection, crop spraying, and similar tasks. Its thoughtful design enables efficient use of the agri-drone and ensures autonomy during field operations.
Platform Benefits
- Everything in one place
- Optimal space organization
- Easy operation – only one operator needed
- Simple configuration and control
- High-performance mixing unit with buffer tank
- Autonomous field operation
- Minimized human contact with chemicals
Trailer Technical Specifications
| Parameter | Value |
|---|---|
| Total length | 3540 mm |
| Platform length | 2320 mm |
| Platform width | 1400 mm |
| Trailer weight | 260 kg |
| Gross weight (official) | 750 kg |
| Gross weight (actual) | 1000 kg |
| Wheel size | 175 R13 |
| Suspension | leaf spring |
Equipment Contents
| Model | UNO |
|---|---|
| Trailer Platform | |
| Spare wheel R13 | + |
| Anti-roll blocks | + |
| Supports, 2 pcs | + |
| LED lighting | + |
| I – Generator Section | |
| Generator compartment | 1000 × 800 × 900 mm |
| Lighting | + |
| Onboard locks, 2 pcs | + |
| Generator locking mounts, 4 pcs | + |
| Supports, 2 pcs | + |
| II – Drone Section | |
| Drone compartment | 1300 × 760 × 900 mm |
| Lighting | + |
| Telescopic platform for drone transport | + |
| Drone mounting holders, 4 pcs | + |
| Battery storage box | + |
| Flap / drone landing pad | + |
| Flap supports, 2 pcs | + |
| Passive ventilation | + |
| Foldable entry step | + |
| Light bar with work lamp holders | + |
| III – Mixing Section | |
| Main tank with conical bottom | + |
| Buffer tank with conical bottom | + |
| Centrifugal pump 80 l/min | + |
| External control panel | + |
| Remote controls, 2 pcs | + |
| Clean water meter with injection control | + |
| Pump line filter | + |
| Main tank inlet filter | + |
| Two-level mixing system | + |
| Hydraulic mixer for powders | + |
| Float level system | + |
| Main tank washing system | + |
| Lighting | + |
| Transfer hose | + |
| IV – Control Section | |
| Control panel for mixer and lighting | + |
| Smart charger | + |
| 12V 100Ah battery with fuse | + |
| 1500W inverter | + |
| Lighting | + |
| 1" hose reel, 15 m | + |
| Fueling gun | + |
| Work spotlight | + |
| Generator extension cord | + |
