Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus
Yuneec Typhoon H Plus

Yuneec Typhoon H Plus

  • Hexacopter with 1" 4K camera
Regular price net incl. VAT / szt.
1 623,29 €
net / szt.
1 996,65 €
incl. VAT / szt.
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.
Brand
Symbol
YUNTYHPEU
Producer code
6970298657917




TYPHOON H PLUS

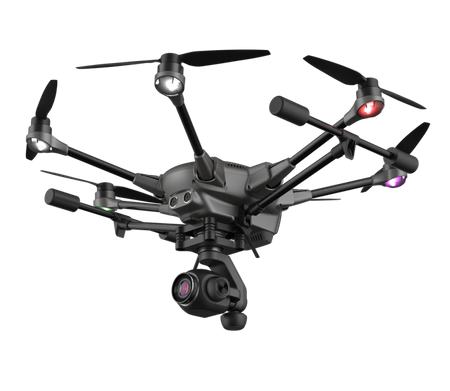

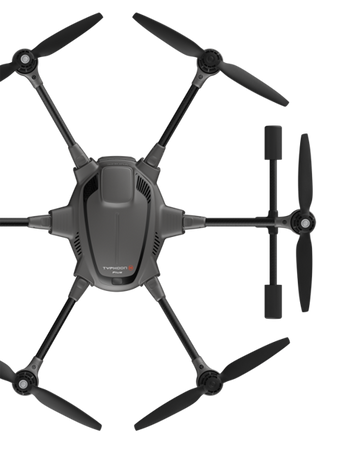

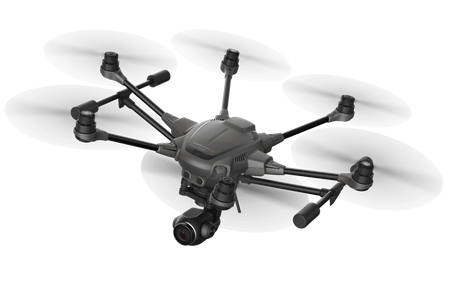

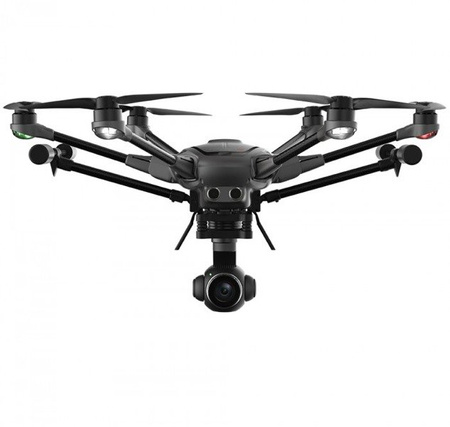

Hexacopter with 1" 4K camera



Smart Hexacopter

A top image quality combined with the reliability and automatic flight modes every photo and videographer desires. The Typhoon H Plus hexacopter is equipped with a 1" camera with 4K video resolution, a PX4-based flight controller and flight modes from Follow Me and Point of Interest to Curve Cable Cam. Relevant core areas of the Typhoon H Plus are now even more shielded against electrical influences and ensure a maximum reliability together with the PX4 controller and the 6-rotor design.







Reliable & Efficient

We cleaned up inside - refined wiring ensures optimized air circulation and improved cooling. Through numerous optimizations, the new Typhoon H Plus is one of the quietest and most efficient hexacopters in its class and manages 25 minutes of flight time under normal weather and flight conditions. The redesigned ST16 remote control has a brighter display, an additional USB slot and a completely new intuitive user interface.









1" 4K Camera

The supplied C23 camera is equipped with an endless 360° rotating gimbal as known from the Typhoon H series. The 1 "sensor captures photos up to 20 MP and videos up to 4K at 60 frames per second, has an improved low light output and an increased dynamic range.







Intelligent Flight Modes

Take your creativity to the next level by letting Typhoon H Plus’s autonomous flight modes focus on the flying while you focus on the shot.





Orbit Me

The Typhoon H flies a circular path around you, keeping the camera trained on you the whole time.







Point of Interest

Select a subject and Typhoon H Plus will orbit that subject autonomously.







Journey

Typhoon H Plus will automatically go up and out, as far as 90 m, and capture the perfect aerial selfie.







Follow Me / Watch Me

Follow Me ensures Typhoon H Plus moves along with you. Watch Me tells the H Plus to follow you while always pointing the camera at you wherever you go.







Curve Cable Cam

Easily program an invisible route for H Plus to fly along. The hexacopter will fly between pre-set coordinates while independently controlling camera position.







Return Home

Simply switch to Home Mode and the Typhoon H Plus will return and land within 8 m of you.









Key Features

  • New flight controller based on PX4 with integrated backup and failsafe
  • Optimized design for improved airflow and cooling as well as specially shielded core areas for increased reliability
  • High efficiency and quiet flight operation
  • Includes 1 "sensor camera with 20 MP and 4K video resolution at 60 FPS, improved residual light performance, dynamic range and a distorted horizon
  • Includes redesigned ST16 remote control with improved display
  • Including flight modes Orbit me, Point of Interest, Journey Mode, Follow me, Curve Cable Cam, Return home
  • 5-rotor mode to compensate a motor failure
  • No data transfer to external server










TECHNICAL SPECIFICATIONS







YUNTYHPEU
Typhoon H Plus + ST16S + Neck strap + C23 + 2x Akku









Aircraft
WEIGHT 1645 g (without camera)
DIAGONAL LENGTH (WITHOUT ROTOR BLADES) 520 mm
FLIGHT TIME Up to 25 min (with C23 camera)
MAXIMUM RATE OF ASCENT 4 m/s
MAXIMUM RATE OF DESCENT 2.5 m/s
MAXIMUM FLIGHT SPEED 13.5 m/s
MAXIMUM FLYING ALTITUDE 500 m
MOTORS 730kV
BATTERY 4S 5250mAh LiPo
CHARGER SC4000-4H
OPERATING TEMPERATURE 0°C - 40°C
Camera
DIMENSIONS 115 x 80 x 130 mm
WEIGHT 350 g
SENSOR 1" CMOS
EFFECTIVE PIXELS 20 MP
VIDEO RESOLUTION max 4K/60FPS
FOCAL LENGTH 23 mm
VIEW FIELD 91°
ISO RANGE 100 - 6400
SHUTTER SPEED 4--1/8000s
WHITE BALANCE Lock, Sunny, Cloudy, Automatic, Fluorescent, Incandescent, Sunset
ANGULAR VIBRATION RANGE ±0.02°
PHOTO FORMAT JPG, JEG+DNG
VIDEO FORMAT MP4
OPERATING TEMPERATURE - 10°C - 40°C
CONTROL RANGE Tilt: 15° to -90° / Pan:360°
Remote
OPERATING SYSTEM Android™
NUMBER OF CHANNELS 16
TRANSMISSION DISTANCE RANGE (OPTIMUM CONDITIONS) 1.6 km
FREQUENCY BAND 2.4 GHz
VIDEO LINK FREQUENCY BAND 5.8 GHz
VIDEO LINK RESOLUTION 720p
LCD SCREEN SIZE 7"
FLIGHT SYSTEM TELEMETRY DATA ON SCREEN Yes
BUILT-IN LIPO BATTERY (VOLTAGE/CAPACITY) 3.6V 8700mAh 31.32Wh Li-ion
WORKING TEMPERATURE 0°C - 40°C
CONNECTION TYPES HDMI, USB
