  • Hexacopter for professional use with E10Tv Thermal Imaging And Low-Light Camera

Regular price 11 883,02 € net 14 616,12 € incl. VAT / szt.
11 456,84 €
net / szt.
14 091,91 €
incl. VAT / szt.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

In a set

Thermal Imaging And Low-Light Camera 640 x 512 34° FOV, 14 mm
Thermal Imaging And Low-Light Camera 640 x 512 34° FOV, 14 mm (1 szt.)
13 203,30 € / szt.
Product unavailable.
Yuneec H520 drone
Yuneec H520 drone (1 szt.)
1 412,82 € / szt.
Product unavailable.
Brand
Warranty



Commercial aerial solution

The H520 is a hexacopter that has been developed for commercial use. The sUAS is the perfect solution for long flight times and a proven and robust technology in an all-in-one package. The H520 is built for inspection, law enforcement, security, construction, surveying, and mapping applications in addition to offering cinematic imaging payload systems.








Built for industrial use and ambitious professionals

The H520 is designed with the inspection industry in mind with six-rotor systems that allow for stable, precise flight, long focal-length lenses that allow the sUAS to fly at greater distance from an object and data storage that may be shared instantly from the ST16S Ground Station or delivered directly in 4K/2K/HD video or 20Mp still images.






Reliable, stable and precise

Even in high-wind environments, the Yuneec H520 sUAS system is able to hold position, allowing the solution to fly even when a manned inspection would be deemed unsafe. Exclusive flight speed control offers slowest speed above stall flight for maximum precision in challenging environments.













Hot-swap payload options

All of our E-Series cameras and the CGOET are hot swap-capable on our sUAS platforms, allowing for significant time-savings through not requiring a power-down/restart of the UAS system. This also allows for consistency of data-storage, rather than using multiple storage devices and locations.  Whether it’s thermal imaging, long focal length, or wide focal-length data capture, memory cards may be swapped from device to device.

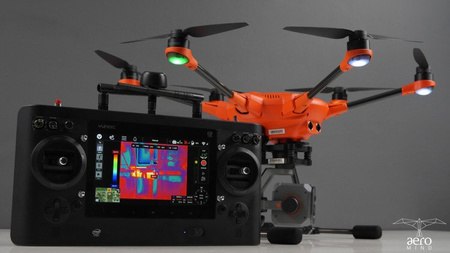

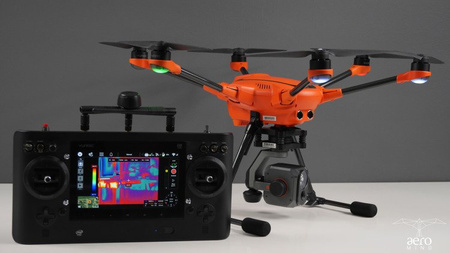

ST16S all-in-one controller

The ST16S Ground Station is an all-inclusive transmitter and receiver that gives you full control over the H520 during flight, allowing users to capture photos and video with great ease. With a large 7-inch integrated screen, the Android-based ST16S controller displays real-time footage of your flight, eliminating the need for an external device. You can also use the ST16S as a mission planner. Plan your flight using the touch screen, and execute your mission with just a single press of a button.







Your benefits at a glance

  • Designed for professional, commercial and governmental requirements
  • 6 rotors for high safety and redundancy as well as high stability and precision even while experiencing wind and turbulence
  • Take-off weight with all available camera systems (E90/E50/CGOET) below 2 kg
  • Reliable position determination by evaluating GPS, Glonass and Galileo satellites
  • High-precision, low-interference compass
  • Good visibility due to bright orange paint
  • Video downlink encryption according to the WPA2 standard with a dynamic password
  • No data transfer to an external server
  • Software is based on solid PX4 code
  • Intelligent sonar collision avoidance for safe and stress-free flying
  • Energy efficient and quiet with a flight time of up to 28 minutes with E50 / 25 minutes with CGOET/E90
  • Numerous, also individual, service and maintenance packages available
  • ST16S with an integrated 7” touch display, voice output and multilingual comprehensive DataPilot™ software
  • HDMI signal directly from the ST16S to output the drone’s live image onto larger monitors
  • Mission planning on the computer or on the ST16S, offline maps available, creation of own maps possible
  • Waypoint and survey missions, including cross-wise flights, suitable for construction surveying, perimeter security, accident reconstruction, 3D scans, orthomaps, area inspections and S&R tasks
  • 2D/3D mapping
  • DataPilot™ automatically generates the flight route when an area to be scanned is specified, including a possible battery change.
  • Definition of resolution over inches per pixel or altitude
  • Missions can be saved for any repetition of the same flight route (e.g., for tracking shots)
  • SDK available: third-party software and adaptation to your own application are possible.
  • Capable of being tethered (sold separately)
  • Lower space requirement and short set-up time
  • Retractable landing gear and 360 degree endlessly rotatable camera gimbal for precise alignment or a permanent all-round view, even during tethering
  • Hot-swappable camera/gimbal systems





YUNH520EU
H520 with 2 batteries and ST16S

Aircraft
DIMENSIONS520 x 455 x 295 mm
FLIGHT TIMECGOET: 25 Min / E90: 25 Min / E50: 28 Min
WEIGHT (WITH BATTERY, WITHOUT GIMBAL)1633 g
BATTERY4S 5250mAh 15,2V LiPo
CHARGERSC4000-4H
REMOTE CONTROLST16S
MAXIMUM FLYING ALTITUDE500 m
MAXIMUM ROTATIONAL SPEED120°/s
MAXIMUM ROTATION ANGLE35°
MAXIMUM RATE OF ASCENT4 m/s
MAXIMUM RATE OF DESCENT2,5 m/s
Remote
OPERATING SYSTEMAndroid™
NUMBER OF CHANNELS16
TRANSMISSION DISTANCE RANGE (OPTIMUM CONDITIONS)Up to 1.6km/1 mile
VIDEO LINK RESOLUTIONHD 720p
VIDEO LINK FREQUENCY BAND5.8 GHz WiFi
VIDEO TRANSMISSIONFCC Compliance: Up to 1.6km/1 mile / CE Compliance: Up to 1.6km/1 mile
FLIGHT SYSTEM TELEMETRY DATA ON SCREENYes
LCD SCREEN SIZE7”
TACTILE AND AUDIO FEEDBACKYes
BUILT-IN LIPO BATTERY (VOLTAGE/CAPACITY)3.6V 8700mAh 31.32Wh Li-ion
CONNECTION TYPES1x HDMI, 2x USB, 1x head phone

E10T

E10Tv

Thermal Imaging And Low-Light Camera 640 x 512 32° FOV, 14 mm

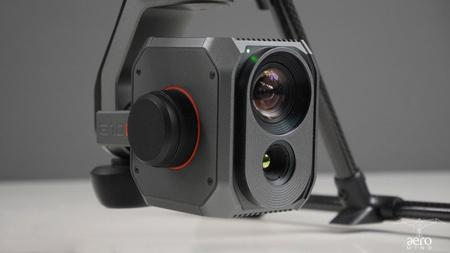

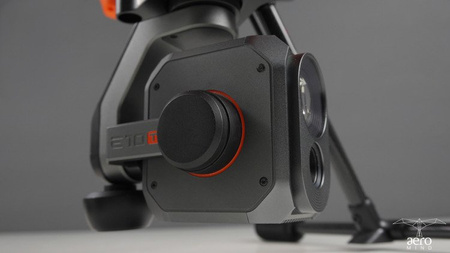

High-resolution dual camera



The E10T with FLIR® thermal sensor for the H520 Hexacopter is a stabilised 3-axis gimbal, thermal imaging and residual light camera all-in-one. The E10T is available with a 320*256-pixel or as E10Tv with a 640*512 thermal imaging resolution. The E10T takes high-quality pictures and detects more details in the dark than the naked eye with the help of its large RGB sensor. Thanks to its dual video stream, you can stream the thermal and residual light image simultaneously to the remote control and then look at the image as an overlay or picture-in-picture. Furthermore, the E10T supports commercial applications such as mission planning.

E10T kamera termowizyjna dla hexacoptera Yuneec H520







E10T kamera termowizyjna dla hexacoptera Yuneec H520

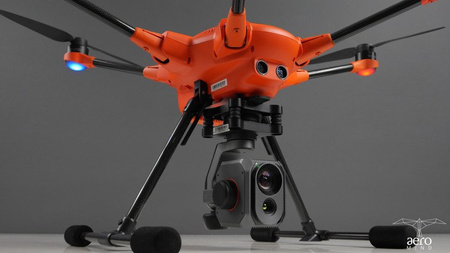

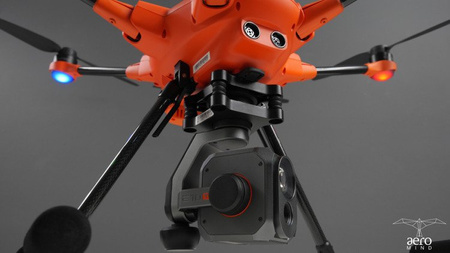

E10T FLIR® with H520 Hexacopter

The H520 Hexacopter was specially developed for inspection, safety, and search & rescue applications. With its multi-sensor compatibility, the H520 Hexacopter offers emergency services, firefighters, police and inspectors reliable and efficient air support in combination with the E10T thermal imaging and residual light camera.







Thermal imaging applications

When searching for people, the drone enables you to look for people very quickly from the air with the E10T thermal imaging camera. In case of fires, fire hot spots can be detected and allows fast and efficient countermeasure against the fire, which can save lives.

E10T kamera termowizyjna







E10T kamera termowizyjna

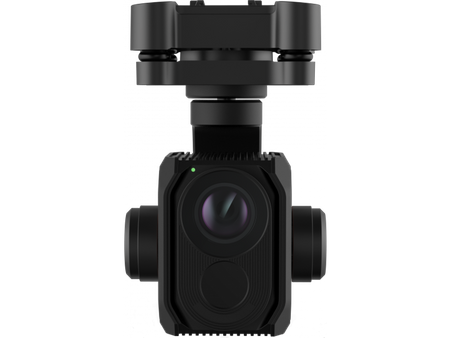

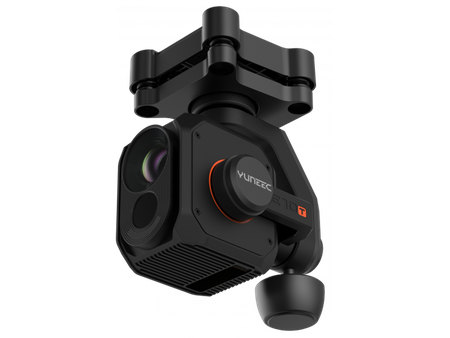

3-Axis gimbal with 360° rotation

The E10T FLIR® camera/gimbal combination is stabilised via 3 axes and thereby provides a still image for inspection and stable pictures. Furthermore, the gimbal can be rotated 360° and provides a full panoramic view with the retractable landing skid.







Interchangeable camera systems

The E10T can be ‘hot-swapped’ and can be exchanged with any other camera/gimbal combination compatible with the H520 such as the E90 1” sensor camera or the E50 inspection camera. The copter does not have to be restarted when changing the camera systems and prevents any forced breaks, which means that you can always work productively and effectively.







E10T kamera termowizyjna

Everything at a glance

  • E10T FLIR® thermal imaging and residual light camera
  • 640x512 E10Tv thermal resolution
  • Dual video stream
  • Compatible with the H520 Hexacopter
  • Up to 28 minutes flight time with the H520
  • Hot-swap gimbal
  • Continuous 360° gimbal rotation
  • Full camera control via the ST16S
  • Supports DataPilot and mission planning





Technical specifications



YUNE10Tv32EU





Camera
CAMERA TYPE

Thermal Imaging And Low-Light Camera for H520

THERMAL RESOLUTION

640x512

FOCAL LENGHT AND FIELD OF VIEW32° FOV, 14 mm
WEIGHT350 gr

DIMENSIONS

115 x 80 x 130 mm

SENSOR

CMOS 1/2,8" 2MP 23mm F2,8

COMPATIBLE COPTER

H520

FLIGHT TIME DO 28 MIN

CONTROL RANG

Tilt:+15° to -90°; Pan:360° Limitless

ANGULAR VIBRATION RANGE

±0.03°

MAXIMUM CONTROL SPEED

oś PITCH oraz ROLL: 30o/s; oś YAW: 120o/s

ISO RANGE

100 - 3200

SHUTTER SPEED

1/30 - 1/8000 s

VIDEO RESOLUTION

FHD (1920x1080) / H264 (NTSC) 24/25/30/48/60 kl/s

PHOTO RESOLUTION

16:9, 1920 x 1080

PIXEL SIZE

12 μm

PHOTO FORMAT

PG, TIFF

VIDEO FORMAT

MP4

VIEW FIELD

89,6o

THERMAL IMAGING CAMERA

uncooled VOx microbolometer

LWIR WAVE LENGTH 8 - 14 μm
OPERATING TEMPERATURE -10o do +40oC
TRANSFER BELT 5,8 GHz, 2 km range
IMAGE RATE < 9 Hz
SENSITIVITY < 50 mK, @f/1.0
TF SUPPORT FAT32 (≤ 32 GB) / exFAT (> 32 GB)
IMAGE OPTIMIZATION Yes
DIGITAL DETAIL ENHANCEMENT Yes
COLOR & MONOCHROME PALETTES (LUTS) Yes
SPOT METER >98,5%, no clusters > 3x3
