Thermal Imaging And Low-Light Camera 320 x 256 34° FOV, 6,3 mm




High-resolution dual camera

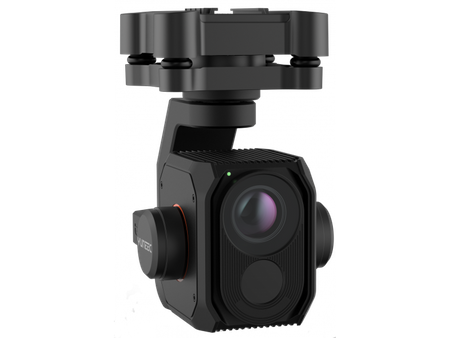

The E10T with FLIR® thermal sensor for the H520 Hexacopter is a stabilised 3-axis gimbal, thermal imaging and residual light camera all-in-one. The E10T is available with a 320*256-pixel or as E10T with a 640*512 thermal imaging resolution. The E10T takes high-quality pictures and detects more details in the dark than the naked eye with the help of its large RGB sensor. Thanks to its dual video stream, you can stream the thermal and residual light image simultaneously to the remote control and then look at the image as an overlay or picture-in-picture. Furthermore, the E10T supports commercial applications such as mission planning.

  E10T kamera termowizyjna dla hexacoptera Yuneec H520



E10T kamera termowizyjna dla hexacoptera Yuneec H520

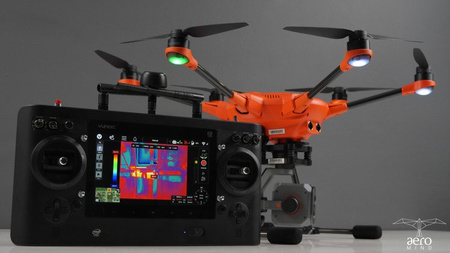

E10T FLIR® with H520 Hexacopter

The H520 Hexacopter was specially developed for inspection, safety, and search & rescue applications. With its multi-sensor compatibility, the H520 Hexacopter offers emergency services, firefighters, police and inspectors reliable and efficient air support in combination with the E10T thermal imaging and residual light camera.



Thermal imaging applications

When searching for people, the drone enables you to look for people very quickly from the air with the E10T thermal imaging camera. In case of fires, fire hot spots can be detected and allows fast and efficient countermeasure against the fire, which can save lives.

  E10T kamera termowizyjna



E10T kamera termowizyjna

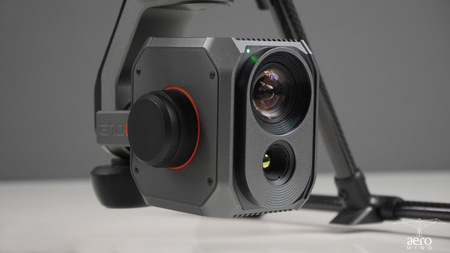

3-Axis gimbal with 360° rotation

The E10T FLIR® camera/gimbal combination is stabilised via 3 axes and thereby provides a still image for inspection and stable pictures. Furthermore, the gimbal can be rotated 360° and provides a full panoramic view with the retractable landing skid.



Interchangeable camera systems

The E10T can be ‘hot-swapped’ and can be exchanged with any other camera/gimbal combination compatible with the H520 such as the E90 1” sensor camera or the E50 inspection camera. The copter does not have to be restarted when changing the camera systems and prevents any forced breaks, which means that you can always work productively and effectively.





E10T kamera termowizyjna

Everything at a glance

  • E10T FLIR® thermal imaging and residual light camera
  • 320x256 E10T thermal resolution
  • Dual video stream
  • Compatible with the H520 Hexacopter
  • Up to 28 minutes flight time with the H520
  • Hot-swap gimbal
  • Continuous 360° gimbal rotation
  • Full camera control via the ST16S
  • Supports DataPilot and mission planning





Technical specifications



YUNE10T32EU





Camera
CAMERA TYPE

Thermal Imaging And Low-Light Camera for H520

THERMAL RESOLUTION

320x256

FOCAL LENGHT AND FIELD OF VIEW34° FOV, 6,3
WEIGHT350 gr

DIMENSIONS

115 x 80 x 130 mm

SENSOR

CMOS 1/2,8" 2MP 23mm F2,8

COMPATIBLE COPTER

H520

FLIGHT TIME DO 28 MIN

CONTROL RANG

Tilt:+15° to -90°; Pan:360° Limitless

ANGULAR VIBRATION RANGE

±0.03°

MAXIMUM CONTROL SPEED

oś PITCH oraz ROLL: 30o/s; oś YAW: 120o/s

ISO RANGE

100 - 3200

SHUTTER SPEED

1/30 - 1/8000 s

VIDEO RESOLUTION

FHD (1920x1080) / H264 (NTSC) 24/25/30/48/60 kl/s

PHOTO RESOLUTION

16:9, 1920 x 1080

PIXEL SIZE

12 μm

PHOTO FORMAT

PG, TIFF

VIDEO FORMAT

MP4

VIEW FIELD

89,6o

THERMAL IMAGING CAMERA

uncooled VOx microbolometer

LWIR WAVE LENGTH 8 - 14 μm
OPERATING TEMPERATURE -10o do +40oC
TRANSFER BELT 5,8 GHz, 2 km range
IMAGE RATE < 9 Hz
SENSITIVITY < 50 mK, @f/1.0
TF SUPPORT FAT32 (≤ 32 GB) / exFAT (> 32 GB)
IMAGE OPTIMIZATION Yes
DIGITAL DETAIL ENHANCEMENT Yes
COLOR & MONOCHROME PALETTES (LUTS) Yes
SPOT METER >98,5%, no clusters > 3x3
