Unlimited details – with the YUNEEC® E30Z for H520In combination with the YUNEEC H520 Hexacopter, the E30Z is suitable for a variety of applications. Thanks to the powerful zoom function, the smallest details can be recognized from a safe distance without having to get too close to the object. The user has full access to all the features of the H520 and pre-installed DataPilot™ software. Thanks to its modular design, the drone can also be equipped with other cameras such as a thermal imaging camera, so the user always remains flexible with its H520. |
 |
|
 |
Hot-swap capableThe E90 is hot-swap capable which minimizes down time and improves productivity. The E90 camera-gimbal combination may be swapped for an E50 or CGOET camera-gimbal combo without power cycling the airframe. The quick release and lock mechanism of the gimbal and airframe mounting system enables fast and efficient exchange of cameras. |
|

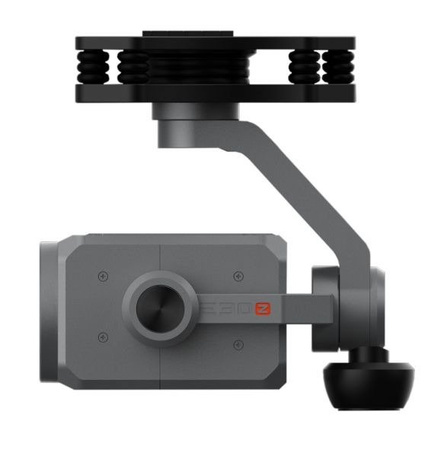

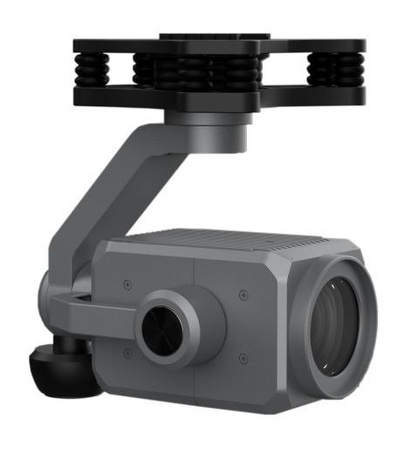

The E30Z at a glance
|
 |
YUNE30ZEU
| DIMENSIONS | 148 x 106 x 145 mm |
| WEIGHT | 595 g |
| SENSOR | 1/2.8 inch CMOS |
| EFFECTIVE PIXELS | 2.13 MP |
| ZOOM | 30x optical / 6x digital |
| COMPATIBLE COPTER | YUNEEC H520 |
| FLIGHT TIME | 20 min (with H520) |
| CAMERA LENS | F1.6 (Wide) to F4.7 (Tele), 29 mm - 872 mm equivalent |
| VIEW FIELD | 63.7° (Wide), 2.3° (Tele) |
| PHOTO RESOLUTION | 16:9, 1920x1080 |
| VIDEO RESOLUTION | 1080p @25/30/50/60 fps |
| PHOTO FORMAT | JPEG |
| VIDEO FORMAT | MP4 |
| IMAGE STABILISATION | Gimbal stabilized, 3 axis |
| ANGULAR VIBRATION RANGE | ±0.02° |
| ISO RANGE | 100-6400 |
| WHITE BALANCE | Auto, Manual (2000 - 10000) |
| SHUTTER SPEED | 1/30-1/6000s |
| PHOTO MODES | Single, Interval 5 - 60 sec |
| EXPOSURE MODE | Auto, Shutter Priority, Aperture Priority, Manual |
| EXPOSURE COMPENSATION | ±3.0 |
| METERING MODE | Average metering, Spot metering (Area option 12x8) |
| CONTROL RANGE | Tilt: -120° to 30°, Pan: 360° unlimited |
| MAXIMUM CONTROL SPEED | Tilt：50° /s, Pan: 50° /s |
| STORAGE TEMPERATURE | -20° - 60°C |
| OPERATING TEMPERATURE | -10° - 45°C |
| SD CARD | Micro SD, Class 10 or UHS-1 |
