Product information "ETX-Lite (256x192/30Hz) For H520E/H850"

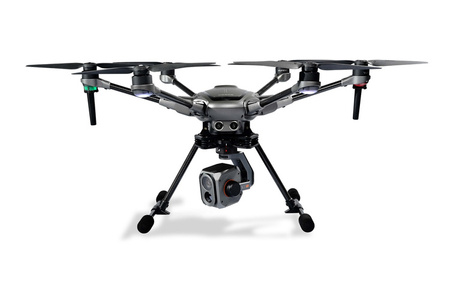

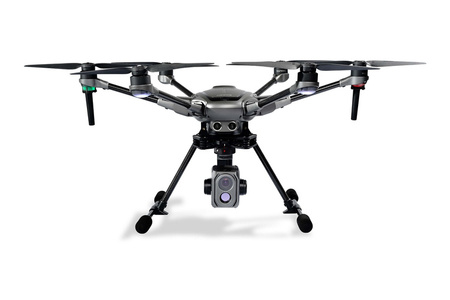

THERMAL IMAGING SOLUTION FOR H520E & H850

The  camera for the H520E & H850 comes in 256x192 resolution and with the ability to
capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity
than the human eye and captures high-quality imagery, even in very low-light conditions. It is small, lightweight and thanks
to its high sensitivity; it is a reliable tool that clearly recognises target objects in detail.

Key Features:

  • High sensitivity for clear and detailed target recognition.
  • Detailed and precise temperature measurement for every pixel.
  • Color palettes adjustable to task requirements.
  • Adjustable Gain Modes to change the measured tempreature range.
  • Post-flight accurate analysis with quantifiable data.
  • Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Search and Rescue, Firefighting and Law enforcement.
  • Camera is compatible with H520E & H850



Parameters ETX-LITE
General Gimbal mount Yuneec X connector
Stable system Three axes (YAW, Pitch, Roll)
Angular Vibration Range ±0.02°
Controllable Range -110°to 30°
±165°
Max Angular Velocity Pitch:30°/sYaw:120°/s
Dimensions 121*81*114mm
Weight 329g
Operating Temperature 10 - 40
Waterproof -
Optical camera Sensor 1/2.8"   Effective Pixels:2MP
Lens DFOV 84° F2.8, 23mm format equivalent
Photo Resolutions 1920*1080


Video Resolutions 1920*1080p 30fps
Photo Formats JPEG
Video Formats MP4
Exposure Mode Program AE Mode, Manual Exposure Mode
Exposure Compensation  ±2.0
Metering Mode  Center-weighted
Electronic Shutter Speed 1/30-1/8000s
White Balance Auto, Incandescent, Sunrise,
Sunset, Sunny, Cloudy, Fluorescent
ISO Range 100-3200
Digital Zoom -
Infrared camera Diagonal Fov 71.0°
Fov(H x V,±5% 3.2mm51.3°×39.6°
Sensitivity 65mK@F1.0@25
Pixel Pitch 12μm
Infrared Wavelength Range 8-14μm
Frequency Full Frame Rate30Hz
Photo Formats JPEG
Video Format MP4
Temperature Compensation Auto
Resolution 256x192
Temperature Measurement Range High Gain -20-150/Low Gain 100-550
Digital Zoom -





Comparison with other Yuneec thermal imaging cameras
