Combo H520E+ ETX-Lite
Combo H520E+ ETX-Lite
Combo H520E+ ETX-Lite
Combo H520E+ ETX-Lite
Combo H520E+ ETX-Lite
Combo H520E+ ETX-Lite
Combo H520E+ ETX-Lite
Yuneec H520E drone
ETX-Lite (256x192/30Hz) For H520E/H850

Combo H520E+ ETX-Lite

Regular price 3 951,66 € net 4 860,54 € incl. VAT / szt.
3 577,36 €
net / szt.
4 400,15 €
incl. VAT / szt.
Lowest price in 30 days before discount: 3 951,66 € net 4 860,54 € incl. VAT / szt.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

In a set

Yuneec H520E drone
Yuneec H520E drone (1 szt.)
1 949,51 € / szt.
ETX-Lite (256x192/30Hz) For H520E/H850
ETX-Lite (256x192/30Hz) For H520E/H850 (1 szt.)
2 425,05 € / szt.
Product unavailable.
Brand
Producer code
YUNH520E-ETXLC
Warranty
Product information "Combo H520E+ ETX-Lite"

COMBO FOR PROFESSIONAL USE

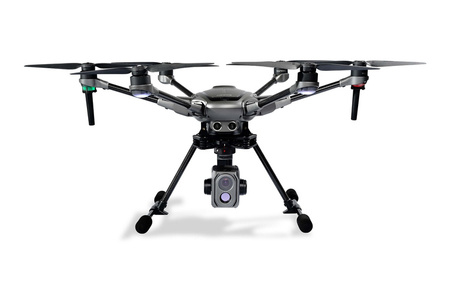

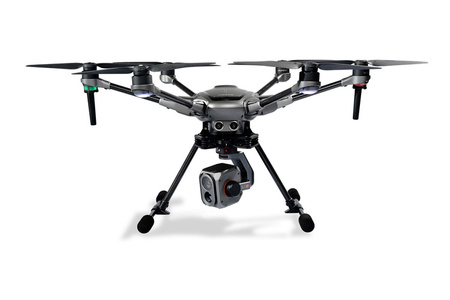

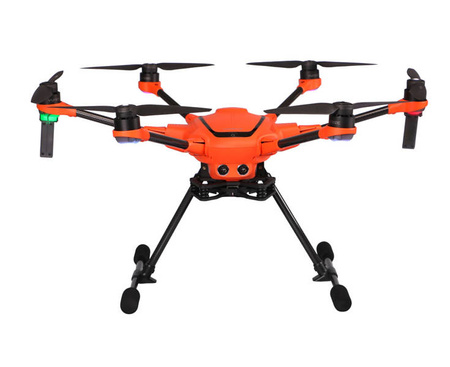

The H520E-OFDM Hexacopter was specially developed for commercial drone applications and provides SAR ground teams, inspectors, police, fire brigades and surveying teams with a versatile tool. The H520E-OFDM is a robust, powerful and flexible UAV platform that can be ideally adapted to individual requirements and thus enables a variety of industry-specific applications. Long flight times and high-quality camera systems with embedded GPS data allow an area to be recorded quickly and precisely, while the interference-free precision compass enables flying even in previously difficult-to-fly environments. In addition to the performance and flexibility, great emphasis was placed on the drone's flight and data security when developing the platform.



KEY FEATURES

  • New Powerful flight control processor
  • New battery connector with fail safe design
  • New long range OFDM module
  • Designed for professional, commercial and governmental requirements
  • High-precision, low-interference compass
  • New 30 pin payload interface
  • No data transfer to external servers
  • Stable and safe 6 rotor system
  • Energy efficient and quiet operation
  • ST16E with integrated 7” touch display, voice output and comprehensive DataPilot™ software
  • HDMI signal directly from the ST16E to output the drone’s live image onto larger monitors
  • Mission planning on the computer or ST16E

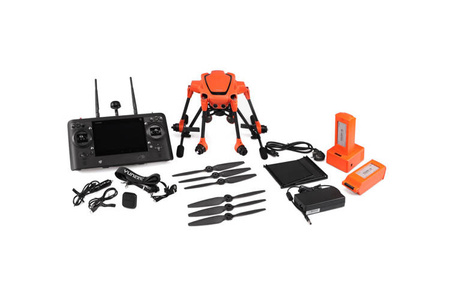

Box Content:

  • H520E Hexacopter with OFDM module
  • ETX-Lite Camera
  • 2 Batteries 4S-6200mAh
  • EU Charger
  • 12v Charging lead
  • ST16E Transmitter (Touchscreen)
  • 1 ST16E battery
  • USB charging cable
  • Sun Shade Screen cover
  • Neck strap
  • SD Card
  • User Manual

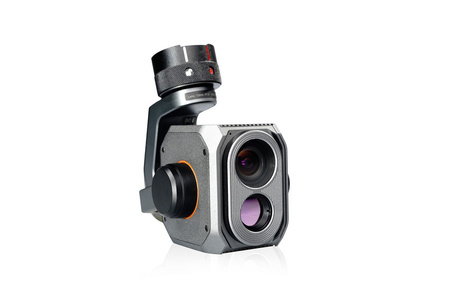

THERMAL IMAGING SOLUTION FOR H520E&H850

The  camera for the H520E & H850 comes in 256x192 resolution and with the ability to
capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity
than the human eye and captures high-quality imagery, even in very low-light conditions. It is small, lightweight and thanks
to its high sensitivity; it is a reliable tool that clearly recognises target objects in detail.



 Key Features:

  • High sensitivity for clear and detailed target recognition.
  • Detailed and precise temperature measurement for every pixel.
  • Color palettes adjustable to task requirements.
  • Adjustable Gain Modes to change the measured tempreature range.
  • Post-flight accurate analysis with quantifiable data.
  • Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Search and Rescue, Firefighting and Law enforcement.
  • Camera is compatible with H520E & H850



 ETX-Lite

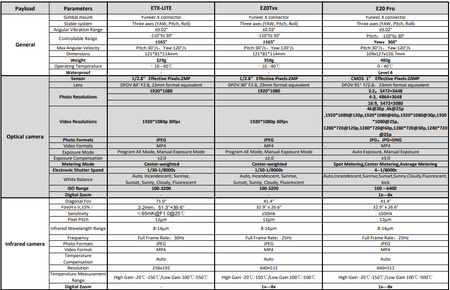

  Parameters ETX-LITE
General Gimbal mount Yuneec X connector
Stable system Three axes (YAW, Pitch, Roll)
Angular Vibration Range ±0.02°
Controllable Range -110°to 30°
±165°
Max Angular Velocity Pitch:30°/sYaw:120°/s
Dimensions 121*81*114mm
Weight 329g
Operating Temperature 10 - 40
Waterproof -
Optical camera Sensor 1/2.8"   Effective Pixels:2MP
Lens DFOV 84° F2.8, 23mm format equivalent
Photo Resolutions 1920*1080


Video Resolutions 1920*1080p 30fps
Photo Formats JPEG
Video Formats MP4
Exposure Mode Program AE Mode, Manual Exposure Mode
Exposure Compensation  ±2.0
Metering Mode  Center-weighted
Electronic Shutter Speed 1/30-1/8000s
White Balance Auto, Incandescent, Sunrise,
Sunset, Sunny, Cloudy, Fluorescent
ISO Range 100-3200
Digital Zoom -
Infrared camera Diagonal Fov 71.0°
Fov(H x V,±5% 3.2mm51.3°×39.6°
Sensitivity 65mK@F1.0@25
Pixel Pitch 12μm
Infrared Wavelength Range 8-14μm
Frequency Full Frame Rate30Hz
Photo Formats JPEG
Video Format MP4
Temperature Compensation Auto
Resolution 256x192
Temperature Measurement Range High Gain -20-150/Low Gain 100-550
Digital Zoom -





DRONE: ---------------
Weight: 1856g (Without Camera)
Max Flight Time: Up to 25 min
Max. Flying Altitude: 5000 meter (MSL)
Battery: 4S 6200mAh Li Ion
Motors: 730kV
Diagonal Length: 520 mm
Max. Rate Of Ascent: 4 m/s
Max. Rate Of Descent: 2,5 m/s
Operating Temperature: 0°C - 40°C
Storage Temperature: 10°C - 50°C
Sensor: Ultrasonic Sensor
REMOTE CONTROL: ---------------
Operating System: Android™
Number of Channels: 16
Transmission Distance Range (Optimum Conditions): 4km (Europe) / 6km (FCC)
Frequency Band: 2.4 GHz, 5.8
Video Link Resolution: HD 720p
