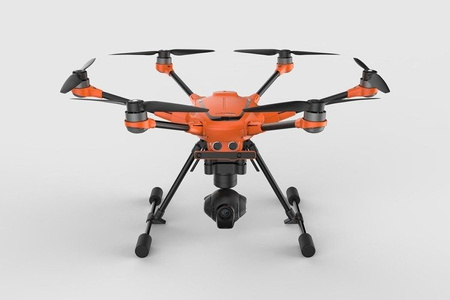

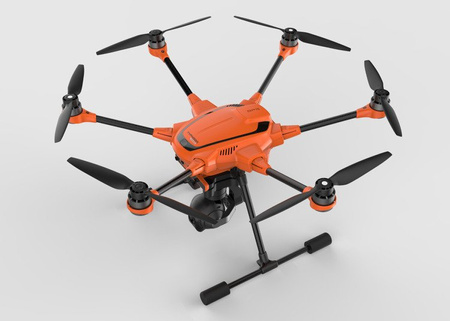

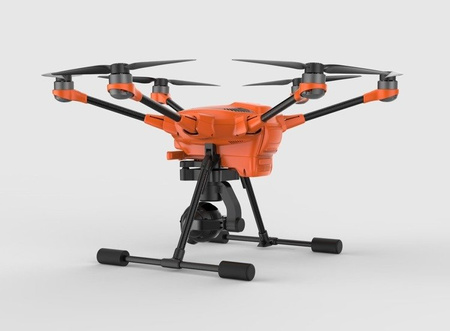

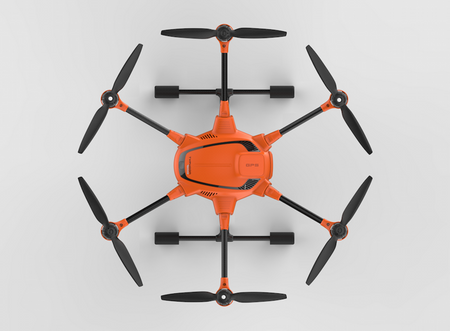

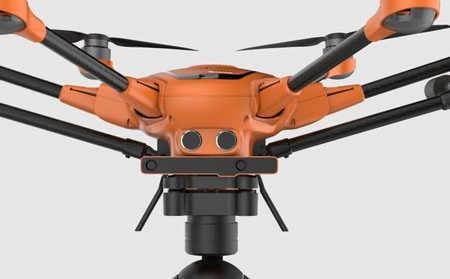

The H520 is a hexacopter that has been developed for commercial use. The sUAS is the perfect solution for long flight times and a proven and robust technology in an all-in-one package. The H520 is built for inspection, law enforcement, security, construction, surveying, and mapping applications in addition to offering cinematic imaging payload systems.
In a set
- Yuneec H520 drone1 855,31 € / szt.
- Yuneec E90 1" Sensor Camera1 404,57 € / szt.
Easy product returns
You can return the product without providing a reason within 14 days.
Commercial aerial solution
Built for industrial use and ambitious professionals
The H520 is designed with the inspection industry in mind with six-rotor systems that allow for stable, precise flight, long focal-length lenses that allow the sUAS to fly at greater distance from an object and data storage that may be shared instantly from the ST16S Ground Station or delivered directly in 4K/2K/HD video or 20Mp still images.
Reliable, stable and precise
Even in high-wind environments, the Yuneec H520 sUAS system is able to hold position, allowing the solution to fly even when a manned inspection would be deemed unsafe. Exclusive flight speed control offers slowest speed above stall flight for maximum precision in challenging environments.
Hot-swap payload options
All of our E-Series cameras and the CGOET are hot swap-capable on our sUAS platforms, allowing for significant time-savings through not requiring a power-down/restart of the UAS system. This also allows for consistency of data-storage, rather than using multiple storage devices and locations. Whether it’s thermal imaging, long focal length, or wide focal-length data capture, memory cards may be swapped from device to device.
ST16S all-in-one controller
The ST16S Ground Station is an all-inclusive transmitter and receiver that gives you full control over the H520 during flight, allowing users to capture photos and video with great ease. With a large 7-inch integrated screen, the Android-based ST16S controller displays real-time footage of your flight, eliminating the need for an external device. You can also use the ST16S as a mission planner. Plan your flight using the touch screen, and execute your mission with just a single press of a button.
Your benefits at a glance
H520 with 2 batteries and ST16S
|DIMENSIONS||520 x 455 x 295 mm|
|FLIGHT TIME||CGOET: 25 Min / E90: 25 Min / E50: 28 Min|
|WEIGHT (WITH BATTERY, WITHOUT GIMBAL)||1633 g|
|BATTERY||4S 5250mAh 15,2V LiPo|
|MAXIMUM FLYING ALTITUDE||500 m|
|MAXIMUM ROTATIONAL SPEED||120°/s|
|MAXIMUM ROTATION ANGLE||35°|
|MAXIMUM RATE OF ASCENT||4 m/s|
|MAXIMUM RATE OF DESCENT||2,5 m/s|
|NUMBER OF CHANNELS||16|
|TRANSMISSION DISTANCE RANGE (OPTIMUM CONDITIONS)||Up to 1.6km/1 mile|
|VIDEO LINK RESOLUTION||HD 720p|
|VIDEO LINK FREQUENCY BAND||5.8 GHz WiFi|
|VIDEO TRANSMISSION||FCC Compliance: Up to 1.6km/1 mile / CE Compliance: Up to 1.6km/1 mile|
|FLIGHT SYSTEM TELEMETRY DATA ON SCREEN||Yes|
|LCD SCREEN SIZE||7”|
|TACTILE AND AUDIO FEEDBACK||Yes|
|BUILT-IN LIPO BATTERY (VOLTAGE/CAPACITY)||3.6V 8700mAh 31.32Wh Li-ion|
|CONNECTION TYPES||1x HDMI, 2x USB, 1x head phone|
1" Sensor Camera
Ultra High Definition & Digital Zoom
The E90 camera is a wide-angle, high resolution, gimbal stabilized imaging system perfectly suited for use in applications that require high quality photo and video. The E90 utilizes a 20 MP 1-inch sensor and the latest H2 high speed image processing chip. The digital zoom feature allows the user to digitally zoom in and out with two finger gesture. Zoom factor is up to 8x, whereas the view on the ST16S is lossless up to 4x.
The E90 is hot-swap capable which minimizes down time and improves productivity. The E90 camera-gimbal combination may be swapped for an E50 or CGOET camera-gimbal combo without power cycling the airframe. The quick release and lock mechanism of the gimbal and airframe mounting system enables fast and efficient exchange of cameras.
1 Inch Sensor
The E90 utilizes a high aperture 1 inch CMOS imager that is capable of capturing still images with 20 megapixel resolution. The sensor provides exceptional dynamic range and improved signal-to-noise ratio. The E90's 23 mm lens equivalent provides wide angle view via an all glass lens system with low distortion and minimal lens dispersion. The E90 comes with a lens adapter ring threaded to fit 40.5mm standard ND filters for flexibility and convenience.
A 3-axis stabilized gimbal with high precision provides a steady platform for the E90 camera. With a precision of +/- 0.02°, E90 shots are rock-solid whether loitering or flying full throttle. The E90 gimbal is capable of unlimited 360 yaw axis rotation. This unique feature, when combined with the H520 retractable landing gear, provides the operator with full 360 unobstructed camera view and the ability to continuously pan the camera without yawing the airframe.
The H520 is the perfect partner for the E90. The hexacopter is appropriate wherever long flight times and tried-and-tested technology are required in an all-in-one package. The six rotor safety as well as the waypoint technology and a lot of other features make the H520 and the E90 camera ideal for both, industrial and private applications.
Highly automated, detailed imagery
User will appreciate the dramatic aerial shots afforded by the E90’s high frame rate and accurate color. In addition, the E90 is ideal for commercial applications such as accident recreation, search and rescue operations, and for 3D mapping/modeling.
At a glance
Example of use
Click to download original photos.
|FOCAL LENGTH||23 mm|
|COMPRESSION BIT RATE||100Mbps|
|DIGITAL NOISE REDUCTION||2D Filter|
|EFFECTIVE PIXELS||20 Megapixels|
|VIEW FIELD||DFOV 91|
|ANGULAR VIBRATION RANGE||± 0.02°|
|MAXIMUM CONTROL RANGE||TILT: -90° - 15° / PAN: 360° limitless|
|MAXIMUM CONTROL SPEED||TILT: 30°/s / PAN: 120°/s|
|ISO RANGE||100 - 6400|
|VIDEO RESOLUTION||4K 60FPS|
|MTF||104lp/mm / CENTER: 0.6 / CORNER: 0.4|
|SENSOR SIZE||1 Inch CMOS|
|SHUTTER SPEED||1/8000s - 4s|
|SD CARD||Class 10 u3 min. 90 Mbit/s|
|SNR||ISO100, SNR 36db|
|STORAGE TEMPERATURE||-10°C - 50°C|
|OPERATING TEMPERATURE||-10°C - 40°C|
