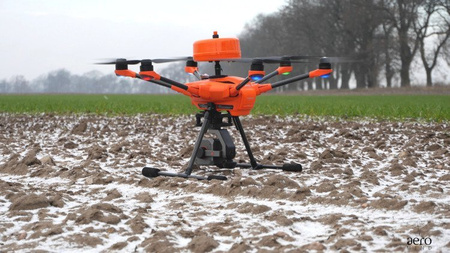

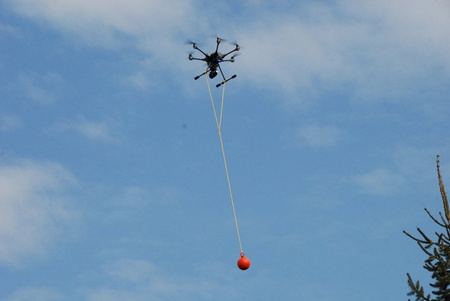

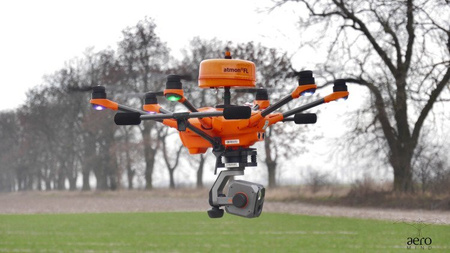

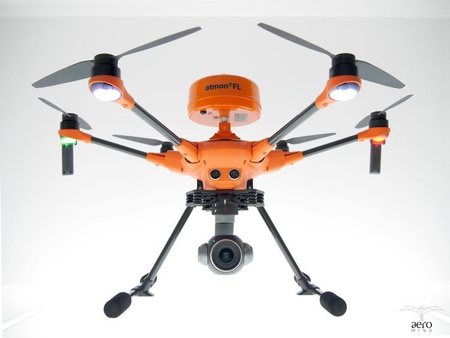

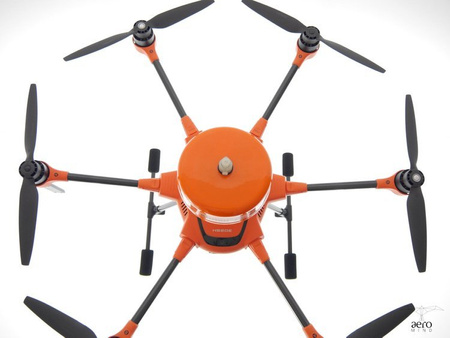

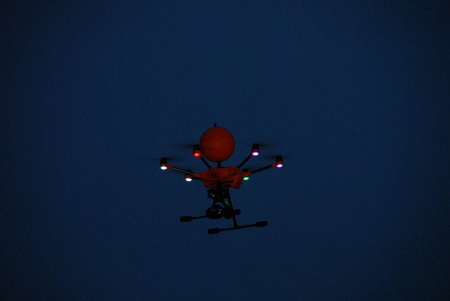

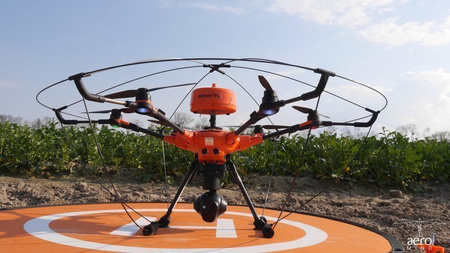

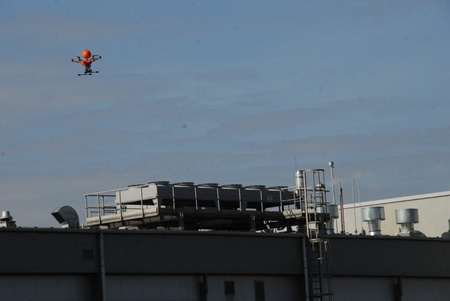

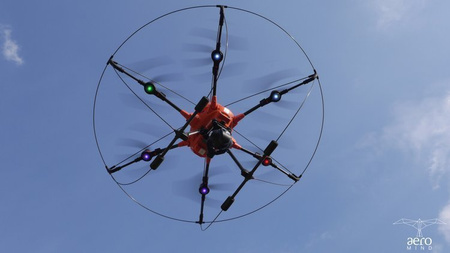

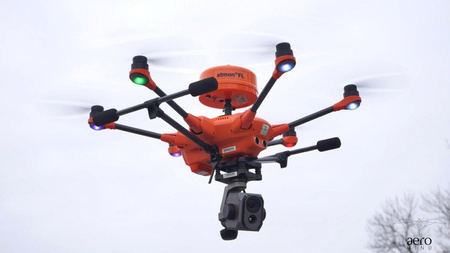

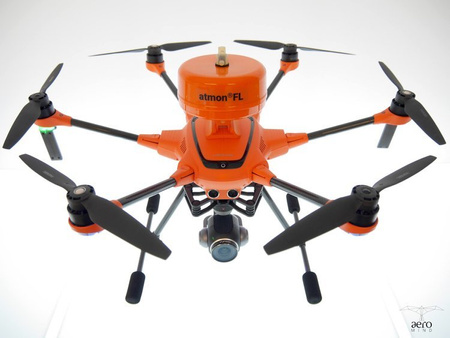

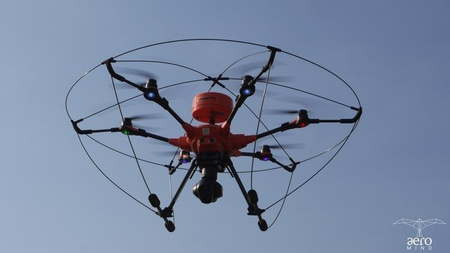

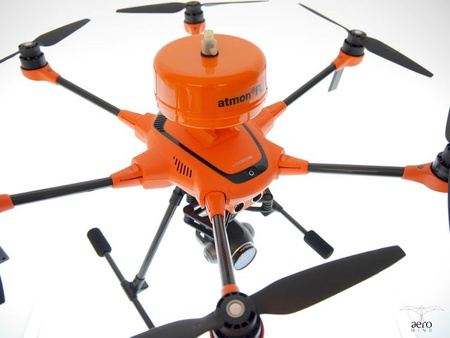

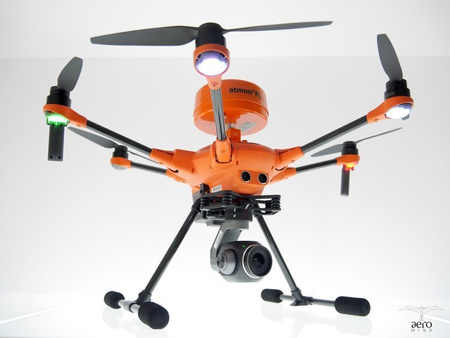

ATMON FL is an independent mobile measurement system for gaseous and powdery air pollutants in forced mode. It is designed to be carried by unmanned aerial vehicles BSP (UAV - Drones), dedicated to installation on Yuneec H520 drone.
Options for individual configuration of ATMON FL with any measured substances
| ATMON-FL Air pollution analyzer (without media measurement modules) |
| ATM-FL-AQ indicator of general air quality AQ: 0-100 ppm; accuracy: 0,05 ppm; resolution: 0,01 ppm |
| ATM-FL-C2H6O C2H6O ethanol metering module: 0-500 ppm; accuracy: 0,3 ppm; resolution: 0,01 ppm |
| ATM-FL-Cl2 Chlorine measurement module Cl2: 0-5 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-CO Carbon monoxide measurement module CO: 0-1000 ppm; accuracy: 0,5 ppm; resolution: 0,1 ppm |
| ATM-FL-CO2 Carbon dioxide measuring module CO2: 0-5000 ppm; accuracy: 50 ppm; resolution: 1 ppm |
| ATM-FL-H2S Hydrogen sulfide measurement module H2S: 0-50 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-HCHO Formaldehyde measurement module HCHO: 0-5 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-HCL Hydrogen chloride measuring module HCL: 0-20 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-HCN Hydrogen cyanide measuring module HCN: 0-100 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-LZO Measurement module of volatile organic compounds VOC: 0-40 ppm; accuracy: 0,04 ppm; resolution: 0,01 ppm |
| ATM-FL-NH3 Ammonia measuring module NH3: 0-100 ppm; accuracy: 1 ppm; resolution: 0,01 ppm |
| ATM-FL-NO2 Nitrogen dioxide measurement module NO2: 0-5 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
|
ATM-FL-NO Nitric oxide measurement module NO: 0-100 ppm; accuracy: 0,1 ppm; resolution: 0,01 ppm |
| ATM-FL-O3 Ozone measurement module O3: 0-2 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-PM Dust measurement module PM10 / PM2.5: 0-999 ug/m3; accuracy: 15 ug/m3; resolution: 1 ug/m3 |
| ATM-FL-RI Irritating substances in the respiratory tract RI: 0-20 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
| ATM-FL-SO2 Sulfur dioxide measurement module SO2: 0-20 ppm; accuracy: 0,02 ppm; resolution: 0,01 ppm |
Set include:
Specification
| POWER SUPPLY | Lithium-Polymer battery, 1S | ||
| FULL CHARGING TIME | ~2,5h | ||
| SAMPLE COLLECTION | Forced, electric | ||
| REACTION TIME | < 30 s | ||
| ATMON BATTERY LIFE H520 UAV |
< 5 h on single charge |
||
| ATMON FLIGHT TIME | ~ 20 min | ||
| Max range | 1600 m | ||
|
20% – 95% RH -20°C - + 50°C 800 mbar – 1150 mbar |
||
| DIMENSIONS | Ø of enclosure max 125 mm OVERALL DEVICE HEIGHT max 115 mm |
||
| WEIGHT | < 300 g | ||
| AERODYNAMI ECNCLOSURE | HIPS – high impact polystyrene |
