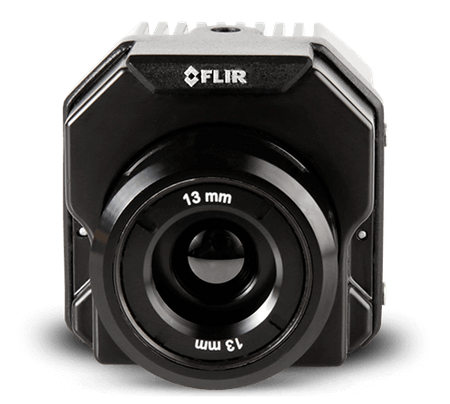

Flir Vue Pro R 640×512
FLIR VUE™ PRO R
Radiometric Drone Camera for sUAS
The new Vue Pro R from FLIR gives both drone operators and certified thermographers the power to gather accurate, non-contact temperature measurements from an aerial perspective. Every still image the Vue Pro R saves contains accurate, calibrated temperature data embedded in every pixel, adding even more value to your sUAS operations and services than ever.
Keeping the same industry-leading thermal imaging quality, interfaces, and capability as the best-selling Vue Pro, the Vue Pro R adds fully radiometric data-gathering to sUAS applications as diverse as building and roof inspections, power grid inspections, infrastructure analysis, precision agriculture, and public safety.
Dostępne obiektywy i częstotliwości odświeżania:
-
30hz, 13mm
-
9hz, 13mm
-
30hz, 19mm
-
9hz, 19mm
-
30hz, 9mm
-
9hz, 9mm
Do pobrania:
FLIR Vue Pro R Datasheet
FLIR Vue Pro Technical Drawing
FLIR Vue Pro R User's Guide
FLIR Vue Pro R Interface Requirements Specification for FLIR TIFF File Format
FLIR Vue Pro & Vue Pro R Power and HDMI Video Module Guide
FLIR UAS Radiometry Tech Note
FLIR Vue Pro R STEP File
Radiometry
The Vue Pro R is more than a thermal imager – it captures accurate, non-contact temperature measurements from an aerial perspective and saves images with calibrated temperature data embedded in every pixel.
MAVLink Integration & Camera Control
In addition to MAVLink compatibility for automated image capture and image geo-tagging, the same Accessory Port connection gives you access to two camera controls over PWM commands, so you can select color palettes, start and stop recording, or trigger the camera's e-zoom in-flight from your radio controller.
Easy to Configure
Vue Pro comes with a built-in, low-power Bluetooth module, so you can easily configure your camera with our custom iOS or Android apps before you take off. Change color palettes, set your image optimization features, configure your PWM inputs, and start recording all without lugging a computer to the field.

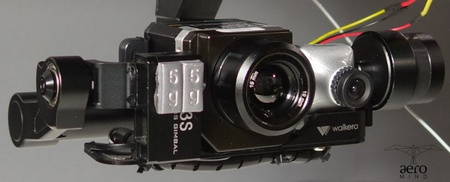

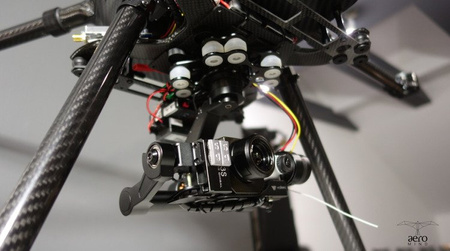

Kamera termowizyjna Flir Vue Pro R 640 x 512 na gimbalu z kamerą światła dziennego pod Yuneec Tornado H920
FLIR VUE Pro R Features
Radiometric Imagery
Factory calibrated for accurate temperature measurements from an airborne perspective
Easy Installation
Accepts 5VDC input power and outputs analog video
Easy Set-up & Configuration
Mobile app (iOS and Android) and built-in Bluetooth makes camera set-up a snap
On-Board Recording
Records digital thermal video and stills to an on-board microSD card
PWM Control
Configure and control the camera in the air with up to four PWM inputs
MAVLink Interface
Trigger automated image capture and geo-tag images for mapping & survey missions
FLIR Vue Pro R Specifications
| Overview | Vue Pro R 640 | Vue Pro R 336 |
| Thermal Imager | Uncooled VOx Microbolometer | Uncooled VOx Microbolometer |
| Resolution | 640 × 512 | 336 × 256 |
| Lens Options (FOV for Full-Sensor Digital Output) |
9 mm; 69° × 56° 13 mm; 45° × 37° 19 mm; 32° × 26° |
6.8 mm; 45° × 35° 9 mm; 35° × 27° 13 mm; 25° × 19° |
| Lens Options* (FOV for NTSC Analog Output) |
9 mm; 62° × 49° 13 mm; 45° × 35° 19 mm; 32° × 24° |
6.8 mm; 44° × 33° 9 mm; 34° × 26° 13 mm; 24° × 18° |
| Physical Attributes | ||
|---|---|---|
| Size | 2.48" × 1.75" x 1.75" (including lens) | |
| Precision Mounting Holes | Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top |
|
| Image Processing & Display Controls | ||
|---|---|---|
| Image Optimization for sUAS | Yes | |
| Scene Presets & Image Processing? | Yes - Adjustable in App | |
| Invertable Image? | Yes - Adjustable in App | |
| Color Palettes | Yes - Adjustable in App and via PWM | |
| Zoom | Yes - Adjustable in App and via PWM | |
| Interfacing | ||
| Input Voltage | 4.8 - 6.0 VDC | |
| Power Dissipation (peak) | 2.1 W (3.9 W) | |
| Environmental | ||
| Radiometric Temperature Range | 0°C to +40°C | |
| Operating Temperature Range | -20°C to +50°C | |
| Non-Operating Temperature Range | -55°C to +95°C | |
| Operational Altitude | +40,000 feet | |
| Power & HDMI Video Module (Optional Accessory) ** | ||
| Input Power Range | 5 VDC – 28 VDC | |
| Reverse Polarity Protection? | Yes | |
| Analog Video Output? | Yes | |
| HDMI Output | 1280 × 720 @ 50hz, 60hz | |
* Because the analog video output resolutions (640 × 480 and 320 × 240, respectively) are less than the full sensor resolution captured when saving digital stills and video, their resultant fields of view are slightly smaller as well. Both sets of values are shown here to allow operators the option of choosing the FOVs that most accurately reflect their pre-flight planning requirements.
** Note: The HDMI output is not intended for use to drive a television or display. The micro-HDMI connector outputs HDMI video for live digital video downlink systems like DJI Lightbridge and 3DR Solo.
Software
To update your app and firmware please visit our software updates page.
Export
FLIR Vue Pro R may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. For full export information visit our export page.
